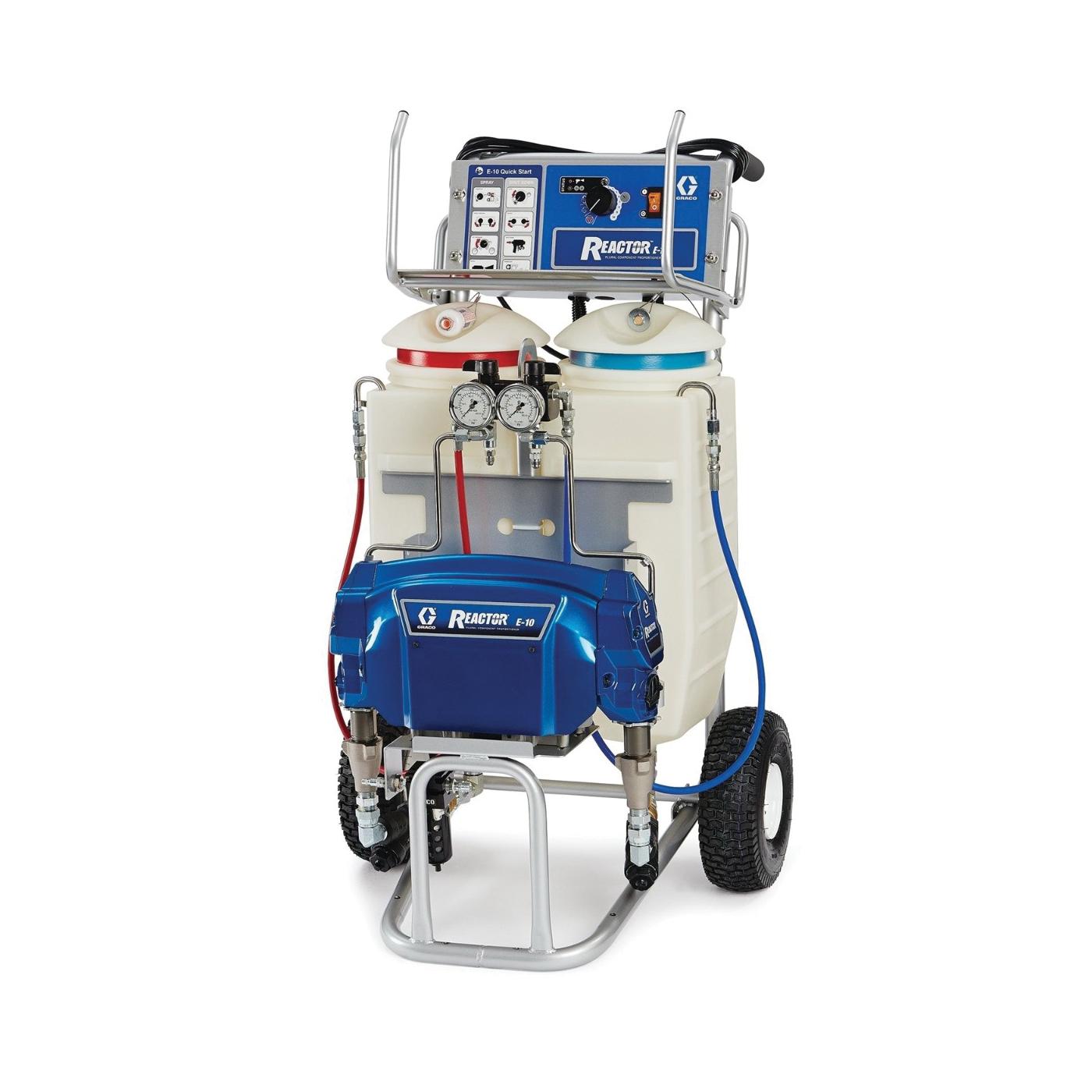

The unheated Reactor E-10 is equipped with on-board tanks, allowing for simple and accurate mixing of higher viscosity plural-component materials at higher outputs. The Reactor E-10's advanced features give you increased uptime and reliability, longer equipment life and reduced maintenance.
GRACO® Reactor and Proportioner Package, 120 V, 15 A, 50/60 Hz, 1 ph Phase, 2.41 hp, 1.8 kW Heater Wattage, 2000 psi Maximum Fluid Working Pressure, 160 deg F Maximum Fluid Temperature, 0.5 gpm Maximum Output, 0.00352 gal Output per Cycle, Air Flow Rate: 12 lb/min, 35 ft Hose Length, Aluminum/Brass/Carbide/Carbon Steel/Chrome/PTFE/Stainless Steel/UHMWPE Wetted Materials, 84.5 dB Sound Level, Pneumatic Wheel, 26-1/2 in Width, 44 in Height, 30 in Depth
| Air Flow Rate | : | 12 lb/min |
| Amperage Rating | : | 15 A |
| Depth | : | 30 in |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 2.41 hp |
| Heater Wattage | : | 1.8 kW |
| Height | : | 44 in |
| Hose Length | : | 35 ft |
| Maximum Fluid Temperature | : | 160 deg F |
| Maximum Fluid Working Pressure | : | 2000 psi |
| Maximum Output | : | 0.5 gpm |
| Output per Cycle | : | 0.00352 gal |
| Phase | : | 1 ph |
| Sound Level | : | 84.5 dB |
| Voltage Rating | : | 120 V |
| Wetted Materials | : | Aluminum/Brass/Carbide/Carbon Steel/Chrome/PTFE/Stainless Steel/UHMWPE |
| Wheel Type | : | Pneumatic |
| Width | : | 26-1/2 in |
- Weighs just 150 lb (68 kg)
- Materials are gravity-fed from on-board tanks
- Handles higher-viscosity materials
- Max output of 0.5 gpm (1.9 lpm)
- Simple start and stop with single knob operation
- Plugs into a standard electrical wall unit
- Easy-to maneuver, even in tight areas
- Rugged, portable design
- Large wheels for simple maneuvering
- Electric motor offers improved performance and reduced operating costs
- Plugs into standard electrical wall outlet
- Easy-to-service fluid section cuts maintenance times
