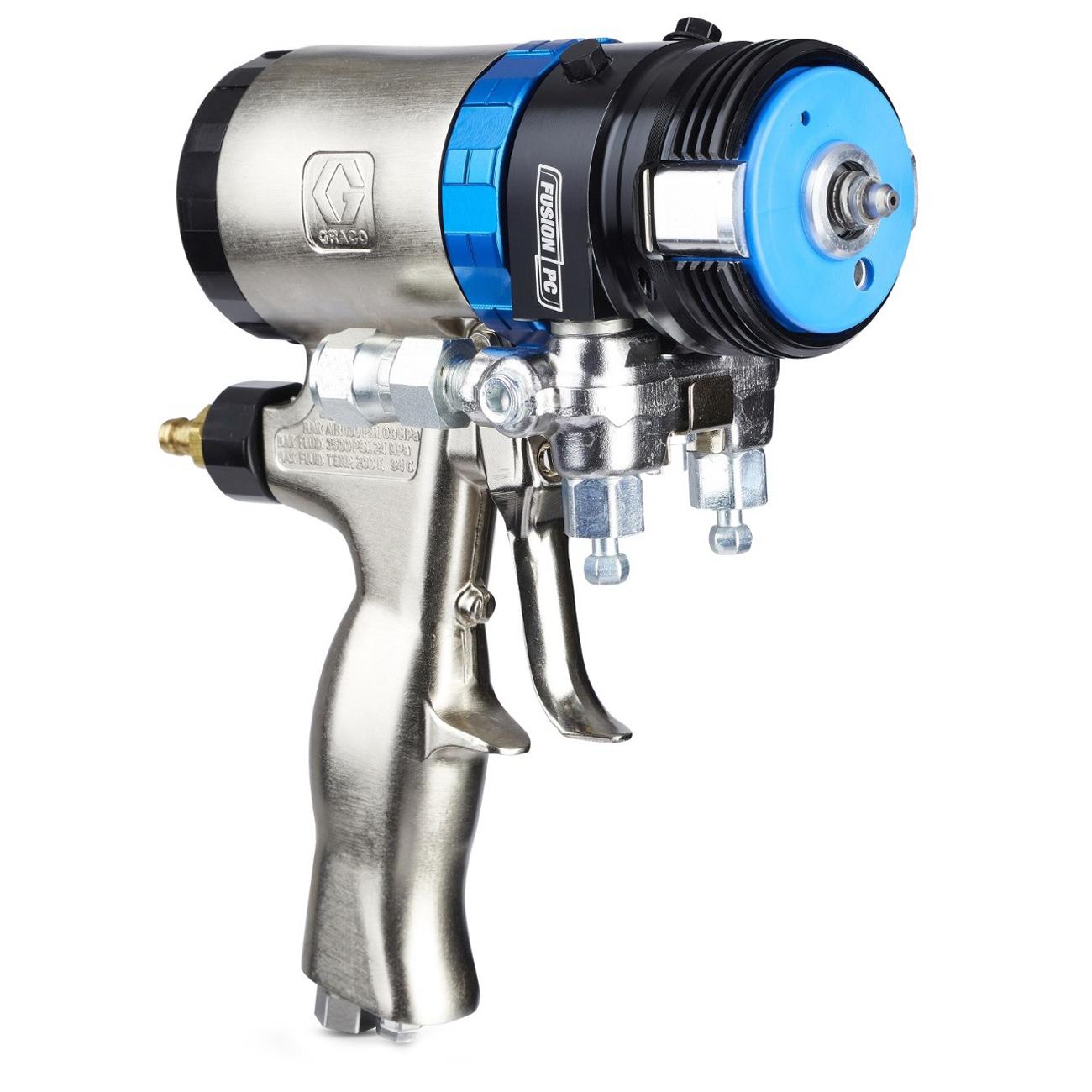

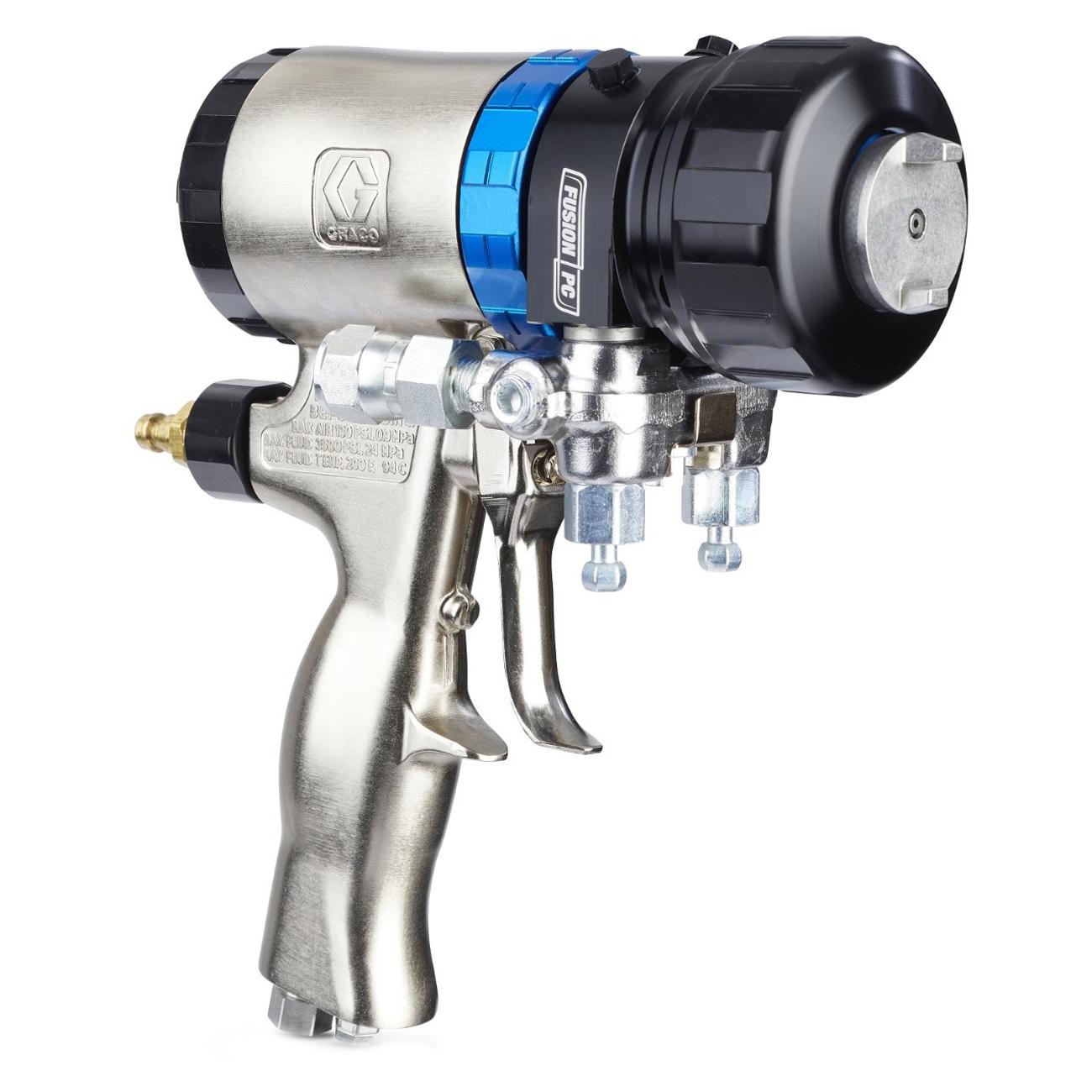

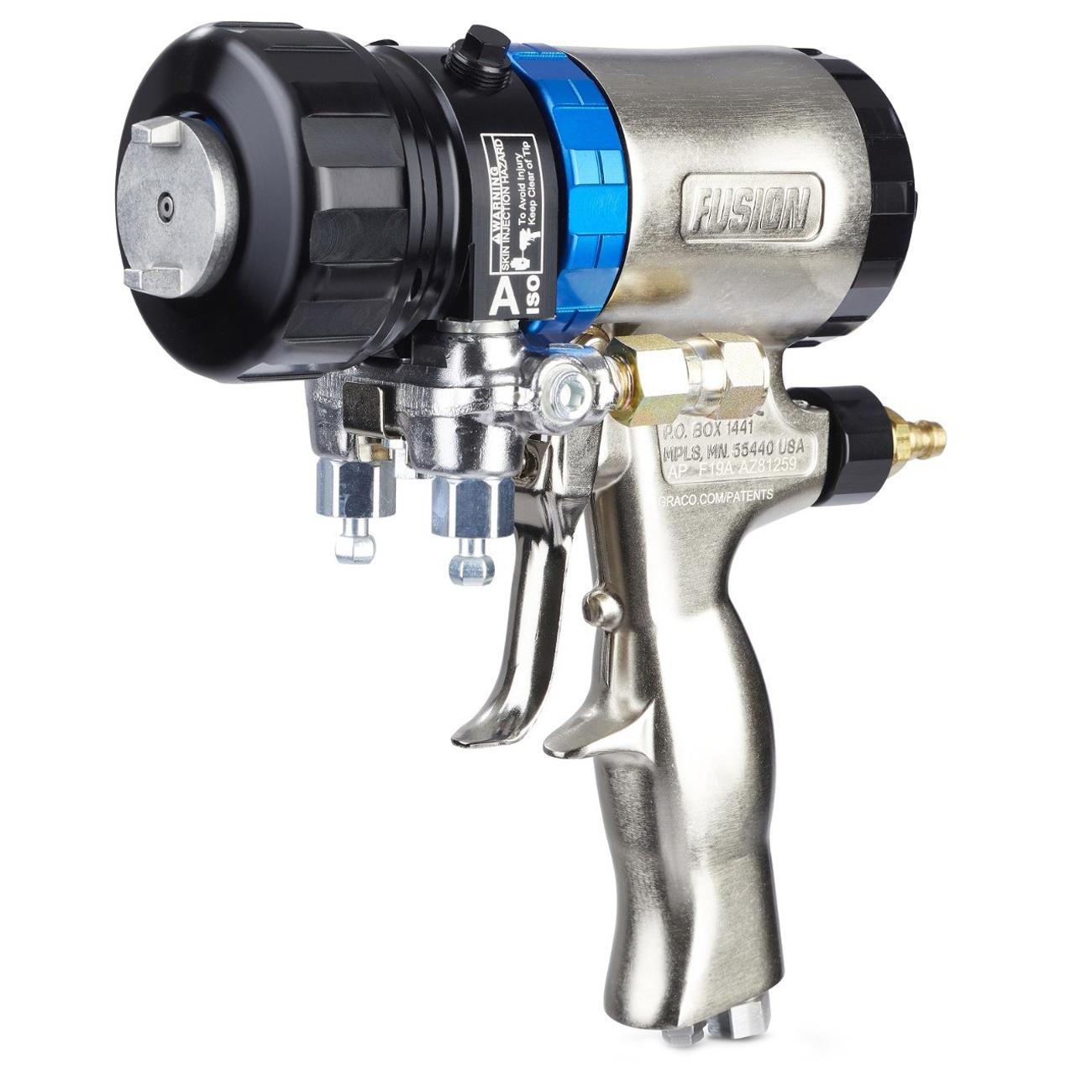

A perfect rebuild in seconds is now possible with the revolutionary fusion PC (ProConnect) gun, featuring an all-in-one cartridge head that replaces multiple individual parts of the fluid section with a single component. Simply replacing the cartridge completely eliminates the need for a time-consuming traditional rebuild, keeping you spraying and minimizing costly downtime.
GRACO® Spray Gun, 1/2 in Inlet Connection, 3500 psi, 50 Lpm Flow Rate, 0.042 in Impingement Port, 01 Equivalent, 0.042 in Orifice, Round Spray Pattern, 11 in Pattern, 2-Finger Trigger, 8 in Length, 3.3 in Width, 8.1 in Height
| Equivalent Size | : | 01 |
| Flow Rate | : | 50 Lpm |
| Height | : | 8.1 in |
| Impingement Port Size | : | 0.042 in |
| Inlet Connection Size | : | 1/2 in |
| Length | : | 8 in |
| Orifice Size | : | 0.042 in |
| Pattern Size | : | 11 in |
| Pressure Rating | : | 3500 psi |
| Spray Pattern | : | Round |
| Trigger Type | : | 2-Finger |
| Width | : | 3.3 in |
- A single cartridge replaces the entire fluid section in seconds
- Built on top of the time-tested Fusion Air Purge platform, the PC gun sprays exactly like a Fusion AP
- Integrated check valves for cross-over containment
- 13 parts are replaced by a single ProConnect cartridge
- Eliminates the need to purchase fluid section O-rings
- Spare ProConnect cartridges can replace your back-up guns
- Retrofit kit available to convert existing Fusion AP guns
