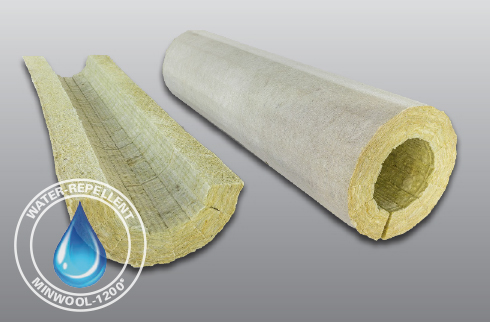

Water-repellent MinWool-1200® preformed pipe is a factory "v-grooved" mineral wool board formed to specific pipe sizes and provided in half-cylinder sections with a variety of facing options. All mineral wool insulation is made from basalt, a volcanic rock and bound with a thermosetting resin. Advanced manufacturing technology ensures that our mineral wool products have consistent product quality, with high fiber density and low shot-content, for excellent performance in thermal control and fire-resistance applications.
JM MinWool-1200® Preformed Pipe Insulation, 6-5/8-in ID (6-in IPS), 2 in Wall Thickness, Fiberglass Mat Facing, 1-Layer, V-Grooved Construction, 0.23 to 0.73 Btu-in/hr-sq-ft-deg F Thermal Conductivity, 1200 deg F, IPS Connection, Mineral Wool, Tan
| Application | : | For commercial, industrial and hot service applications |
| Color | : | Tan |
| Construction | : | 1-Layer, V-Grooved |
| Domestic/Import | : | Domestic |
| Facing Type | : | Fiberglass Mat |
| Flame Spread Index | : | 25 |
| For Pipe Size | : | 6 in IPS |
| Inside Diameter | : | 6-5/8 in |
| Iron Pipe Size | : | 6 in |
| Length | : | 3 ft |
| Material | : | Mineral Wool |
| Smoke Developed Index | : | <50 |
| Style | : | Water-repellent |
| Sub Brand | : | MinWool-1200 |
| Temperature Rating | : | 1200 deg F |
| Thermal Conductivity | : | 0.23 to 0.73 Btu-in/hr-sq-ft-deg F |
| Wall Thickness | : | 2 in |
- Thermal performance - good thermal conductivity values help maximize control of heat loss, contributing to reduced operating costs and greater energy savings
- Lightweight, low dust, protected outer surface, easy-to-handle and fabricate
- Clean handling properties and factory applied facers help reduce skin irritation and minimize job cleanup time and expense
- Mold-resistant - MinWool-1200® PF pipe insulation does not support the growth of fungi
- This product has the potential for extended lead times.
Instruction/Installation Manual
