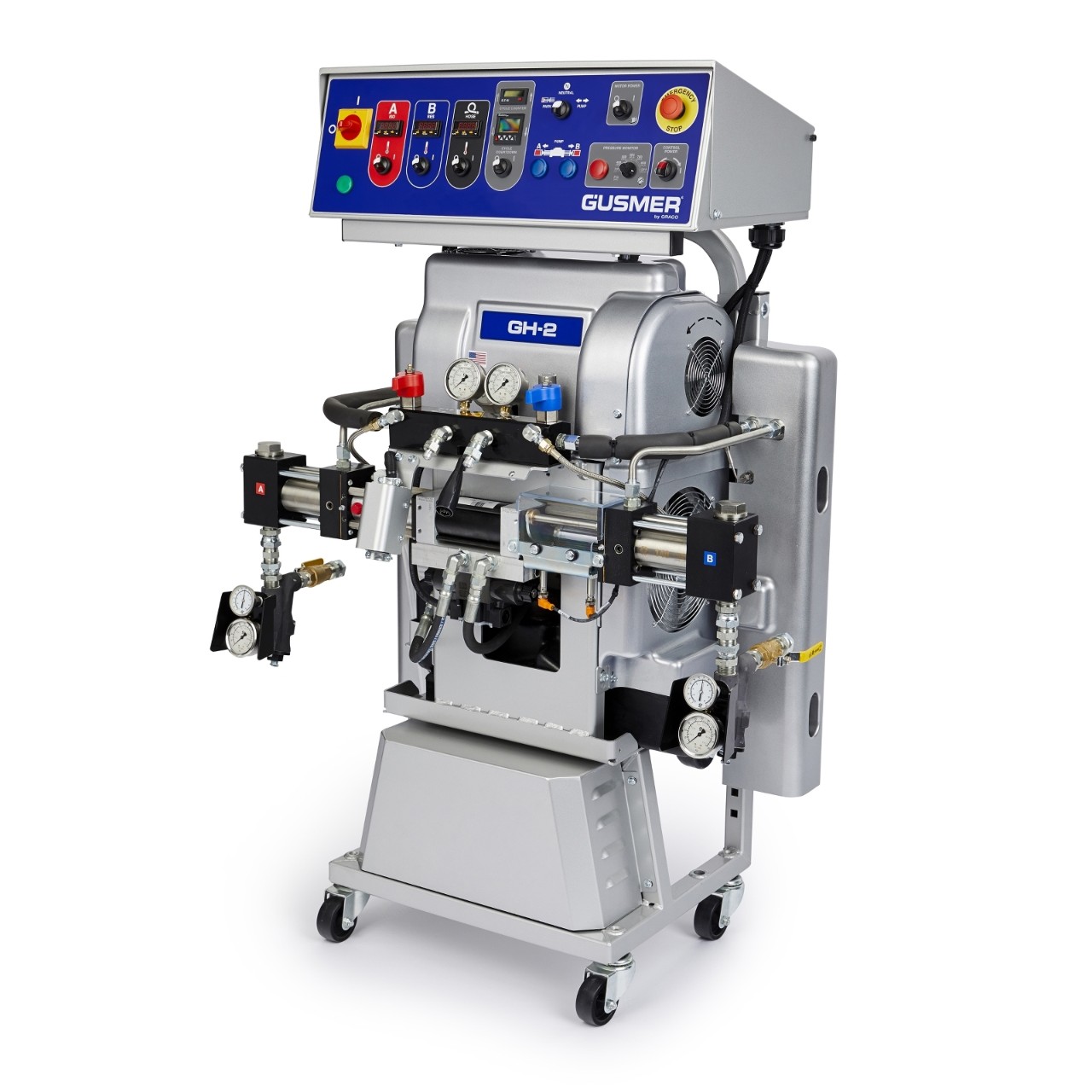

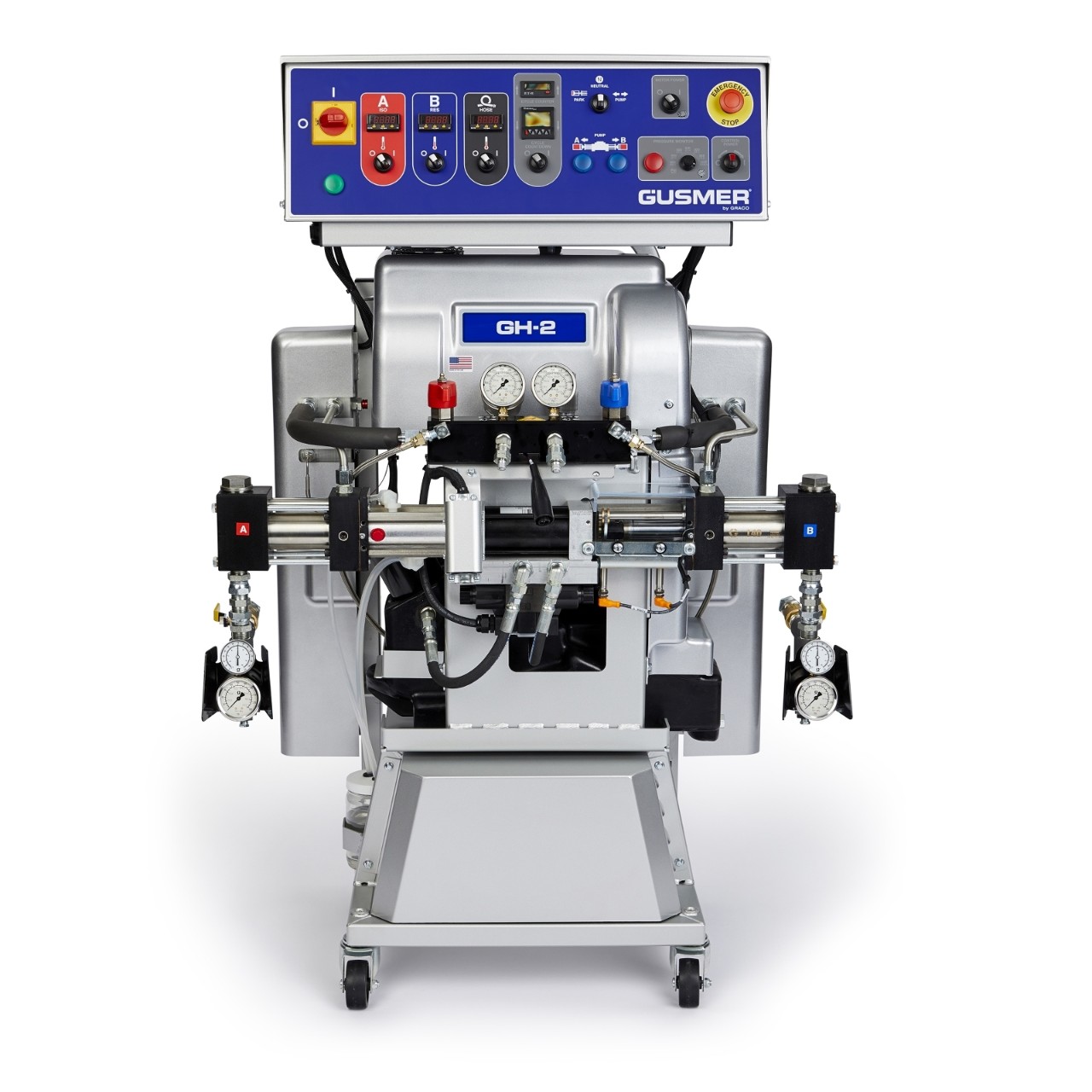

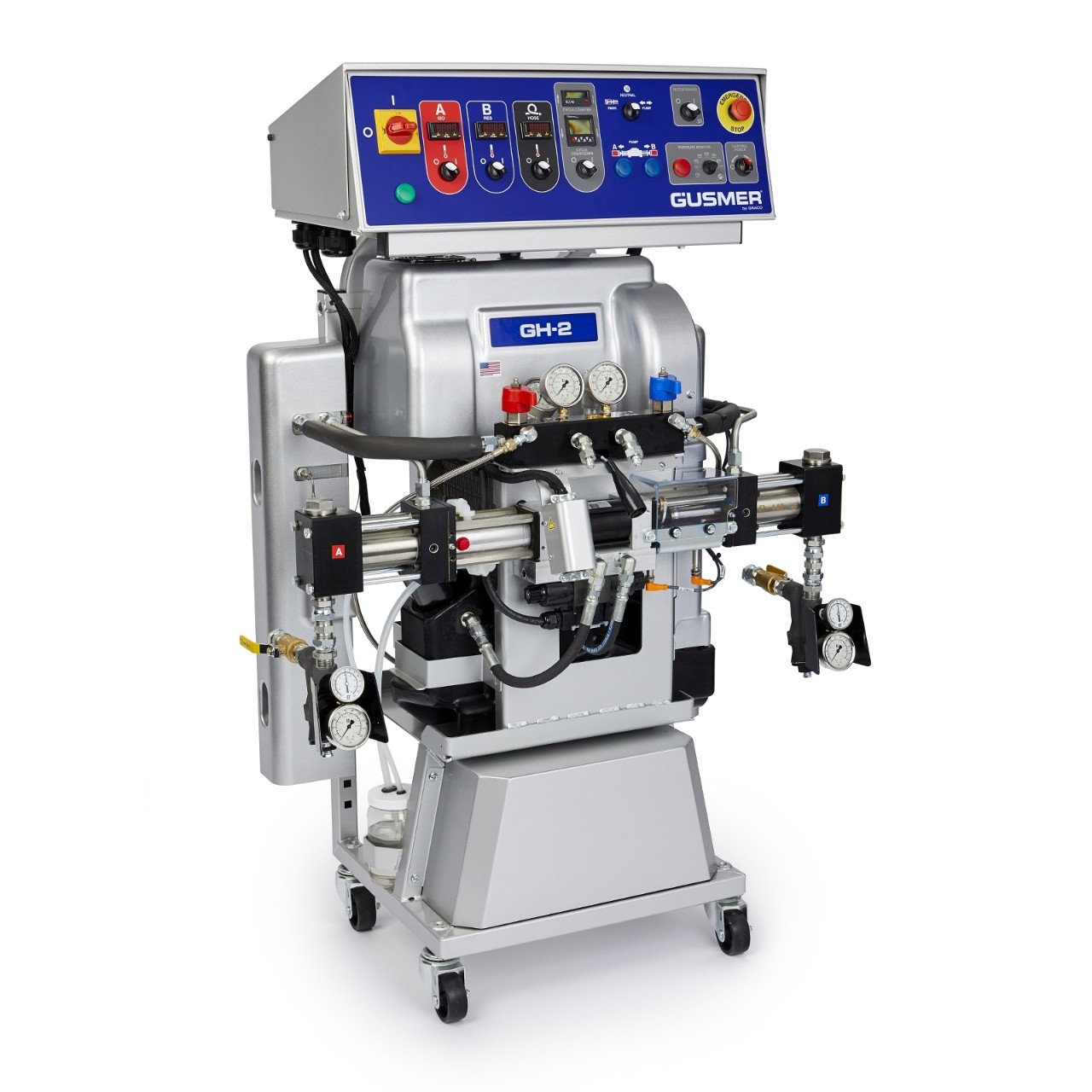

Guided by both simplicity and reliability, Gusmer's point-to-point wired electrical cabinet sits atop Graco's industry-proven hydraulic Reactor 2 chassis, including the Reactor horizontal pump line, fluid heaters, and hydraulic system. The Gusmer GH-2 hydraulic proportioner: a simple, durable machine offering impressive performance at an attractive price. Ideal for a wide range of spray foam applications, including residential insulation, commercial wall insulation, roof insulation, rim and band joist and even concrete lifting.
GRACO® Proportioner

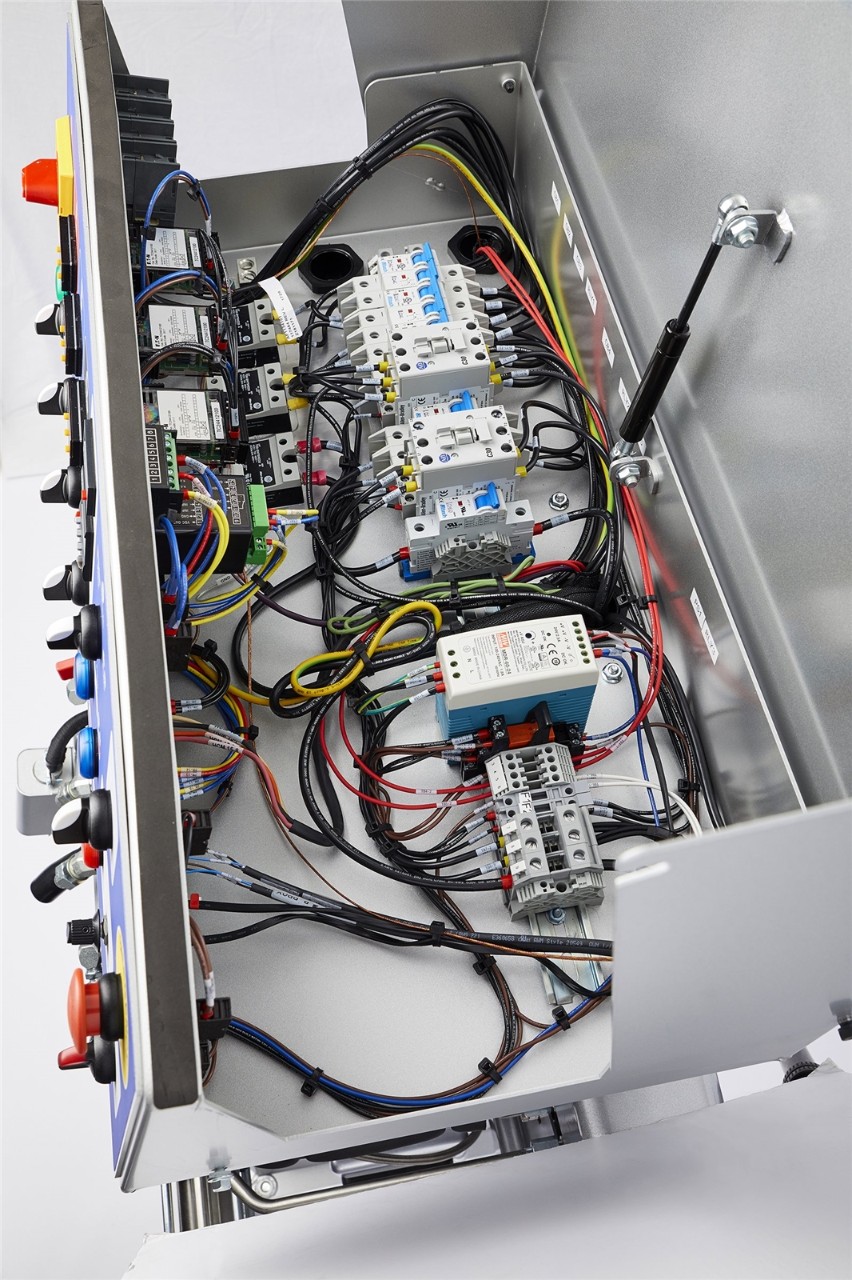

- The Gusmer system features easy access and service to the electrical cabinet. With standard off-the-shelf hardware it’s an easy-to-use and easy-to-maintain design.
- 46 Amperage
- Manual Applicator Type
- 230 Voltage
- 10 kW Power Rating
- 82.6 db(A) Sound Pressure Level
- 50/60 Frequency Hz
- 28 lb/min Flow Rate
- Plural Component Product Type
- Hydraulic Power Source
- 21 in Depth
- 54 in Height
- 32 in Width
- Solvent Flush Type
- Fusion AP Gun Type
- Polyurethane Foam Material Application
- 1:1 Maximum Mix Ratio
- Gusmer Model
- 1 Phase
