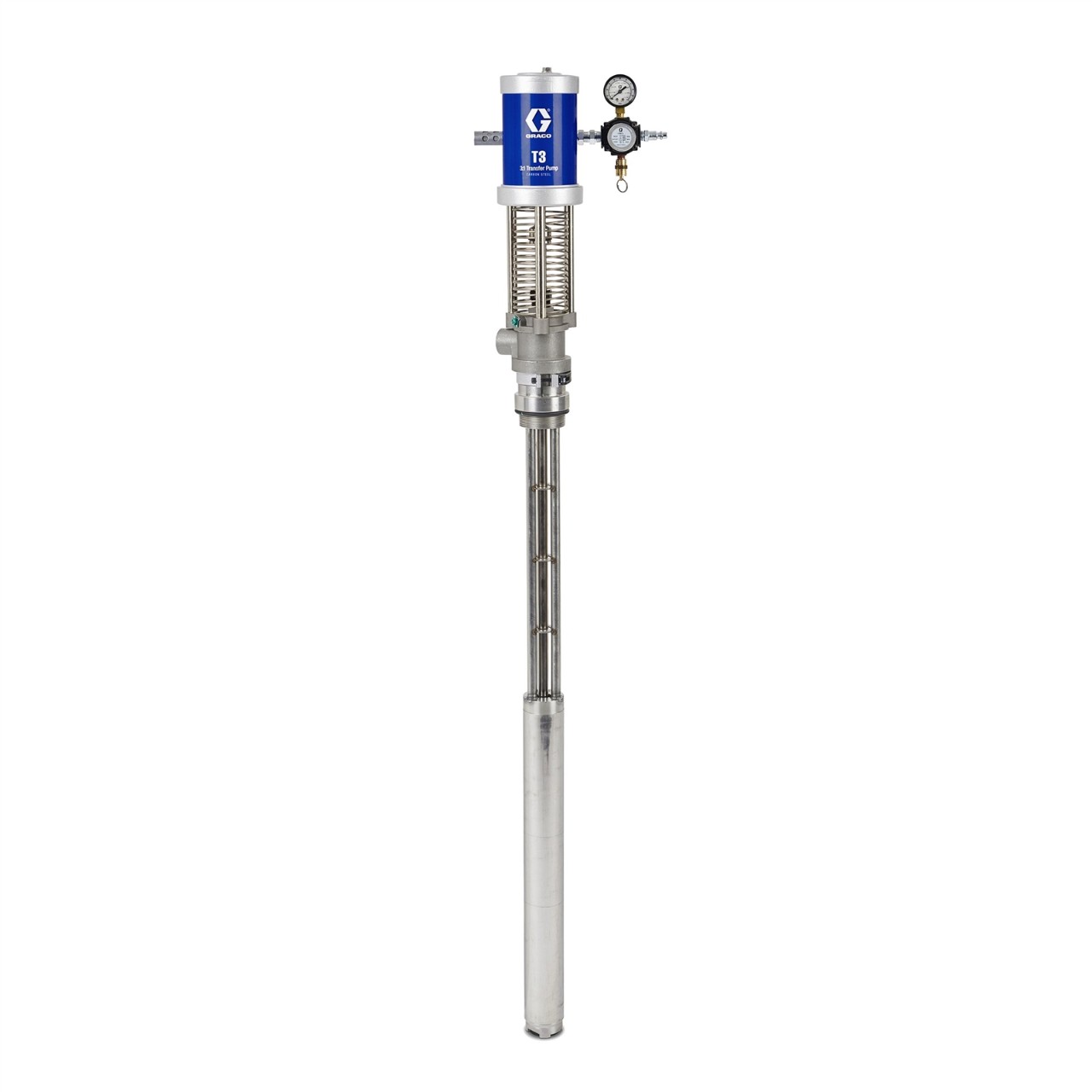

Transfer Pumps are required to move A and B materials to the Reactor Spray Systems. The T3 Transfer Pump combines Graco’s proven Merkur air-motor and popular T2 stainless steel lower. The T3 is a 3:1 ratio pump – using less air pressure to provide the same fluid pressure required
GRACO®, Supply Pump
- More quiet – Studies show the T3 Transfer Pump is about 3x more quiet than the T2 Transfer Pump
- Less maintenance - the Merkur air-motor is based on air pilot valve technology. The air-motor switching is purely pneumatic. This differs from T1 and T2 Transfer Pumps, which use a mechanical reversing mechanism in the air-motor
- 1/4 in Air Inlet Size
- Female Air Inlet Thread Gender
- NPT Air Inlet Thread Type
- Polyurethane Foam, Polyurea Compatible Material
- Stainless Steel Construction
- Female Fluid Outlet Thread Gender
- NPT Fluid Outlet Thread Type
- Stainless Steel Material
- 0.69 Mpa Maximum Air Inlet Pressure
- 100 psi Maximum Air Inlet Pressure
- 2.2 Mpa Maximum Working Pressure
- 315 psi Maximum Working Pressure
- 3:1 Pump Ratio
