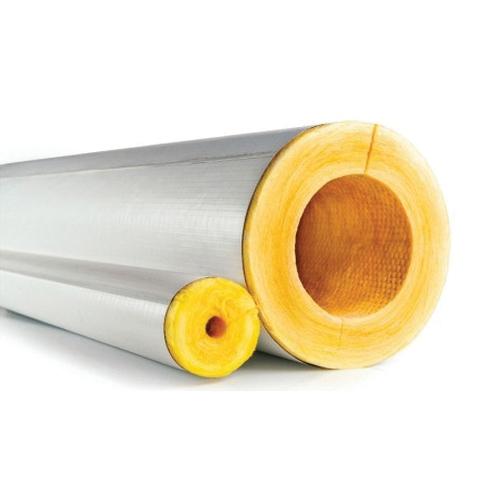

Owens Corning® metric fiberglass pipe isolation is molded of heavy density resin bonded inorganic glass fibers that come in one-piece, 36 in long, hinged sections. The insulation is tailored to fit for metric-sized copper, iron, PVC and other polymer pipe applications.
Owens Corning ASJ Max-SSL II for Aquatherm® Fiberglass Pipe Cover, Inside Diameter: 12-3/4-in, Iron Pipe Size: 12-in, 1-1/2 in Wall Thickness, ASJ MAX-SSL II Facing, Density: 3.5 to 5.5 pcf, 0.22 to 0.54 Btu-in/hr-sq-ft-deg F Thermal Conductivity, 0 to 1000 deg F, Fiberglass, Yellow, 3 ft Length, Domestic/Import: Domestic
| Application | : | Commercial Buildings, Industrial Facilities and Process or Power Plants Applications |
| Burst Strength | : | 100 psi |
| Density | : | 3.5 to 5.5 pcf |
| Facing Type | : | ASJ MAX-SSL II |
| Flame Spread Index | : | 25 |
| For Pipe Size | : | "12" in IPS |
| Inside Diameter | : | 12-3/4 in |
| Iron Pipe Size | : | 12 in |
| Length | : | 3 ft |
| Smoke Developed Index | : | 50 |
| Sub Brand | : | AQ Fiberglas |
| Water Absorption | : | Less than 5 % |
| Water Vapor Permeability | : | 0.01 perm-in |
- ASJ MAX is an all service jacket with a polymer film exterior surface that is smooth, durable, cleanable, wrinkle-resistant, resists water staining and doesn't support mold or mildew growth
- ASJ MAX can resist short durations of water exposure that may occur during construction
- SSL II® Positive Closure System is an advanced double adhesion that fastens and installs with no need for staples or mastic
- Insulation is tailored to fit with 1) a flexible core to compress over copper and some small bore iron pipes and fittings, saving time by eliminating the need to fillet and 2) a rigid core for fast and easy fabrication on larger pipes
- The product has a maximum operating temperature of 1000 deg F (538 deg C) (with heat-up schedule)
- The product does not contain Polybromodiphenyl ethers (PBDE) (penta, octa or deca-brominated diphenyl)
- Owens Corning is the only manufacturer to offer metric-sized fiberglass pipe insulation
Instruction/Installation Manual
