WERNER® 24-ft Fiberglass D-Rung Extension Ladder

WERNER® 24-ft Fiberglass D-Rung Extension Ladder
  • Manufacturer: Werner Co
  • Brand: WERNER®
  • Item ID: 5XXXLDR24FGE
  • MPN: D6224-3
  • LOG IN TO VIEW
  • PRICING & AVAILABILITY

The D6224-3 fiberglass three-section 24 ft extension ladder has non-conductive rails making this ladder ideal for working near electricity. With a duty rating of 300 lb, the ladder is durable and long-lasting. The exclusive Alflo® rung joint means Twist-Proof® performance on the job. The Traction-Tred® D-rungs are slip-resistant and the side rails are interlocking. The dual action feet are for use on hard or penetrable surfaces and swivel easily. The base and fly sections separate easily to use the base section as a single ladder. The durable rail shield bracket and shoe help protect the bottom of the rail. The fly section rails are pre-pierced at the top for easy field installation of accessories.

WERNER® D-Rung Extension Ladder, 300 lb Load, ANSI A14.5 ANSI, 21 ft Maximum Working Length, 18-3/4 in Base Width, Non-Conductive Rail, Slip-Resistant Shoe, 1.19 in Flange, 17-3/4 in Fly Width, 1-5/8 in Rung, 3.31 in Rail, Fiberglass, Orange, 108 in L x 18-3/4 in W x 9-5/8 in H

ANSI Type      :      ANSI A14.5
Base Width      :      18-3/4 in
Color      :      Orange
Dimensions      :      108 in L x 18-3/4 in W x 9-5/8 in H
Flange Size      :      1.19 in
Fly Width      :      17-3/4 in
Load Capacity      :      300 lb
Material      :      Fiberglass
Maximum Working Length      :      21 ft
Rail Size      :      3.31 in
Rail Type      :      Non-Conductive
Rung Size      :      1-5/8 in
Shoe Type      :      Slip-Resistant
  • Compact three-section design is 9 ft 4 in when closed
  • Exclusive Alflo® rung joint means Twist-Proof® performance

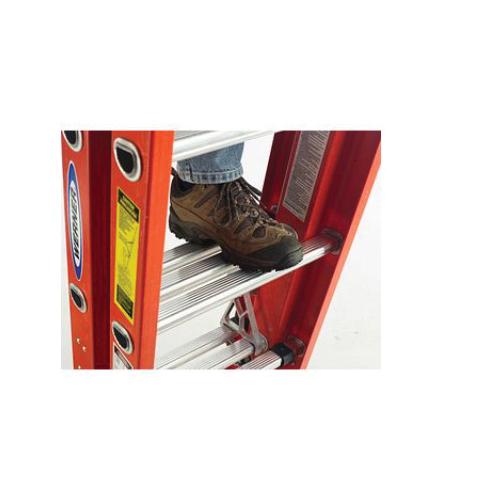

  • 1.63 in slip-resistant Traction-Tred® D-rungs
  • Interlocking side rails with internal rail guides on bottom of fly section securely connect rails
  • External guides at top of base section securely interlock rails

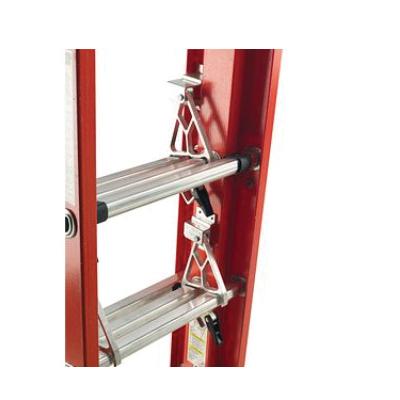

  • Heavy-duty extruded rung locks are spring loaded to operate smoothly
  • Combination rail shield bracket and shoe with SHU-LOK® and slip-resistant pad
  • Moulded rung braces on bottom step for increases durability
  • Mar-resistant moulded end caps
  • Ladder is considered 27 ft by ANSI standards
  • Smooth operating pulley with polypropylene rope
  • Slip-resistant shoe with SHU-LOK® foot
