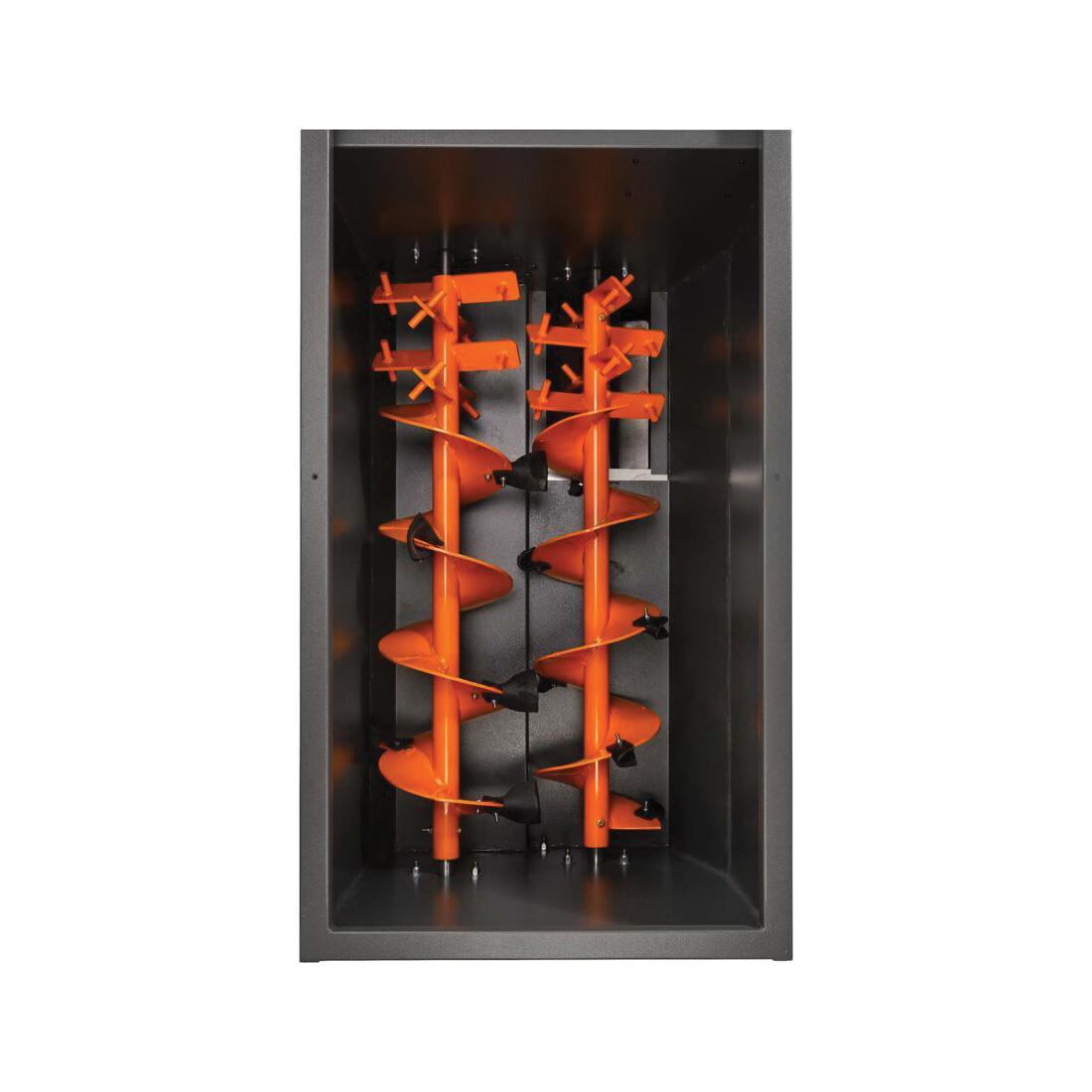

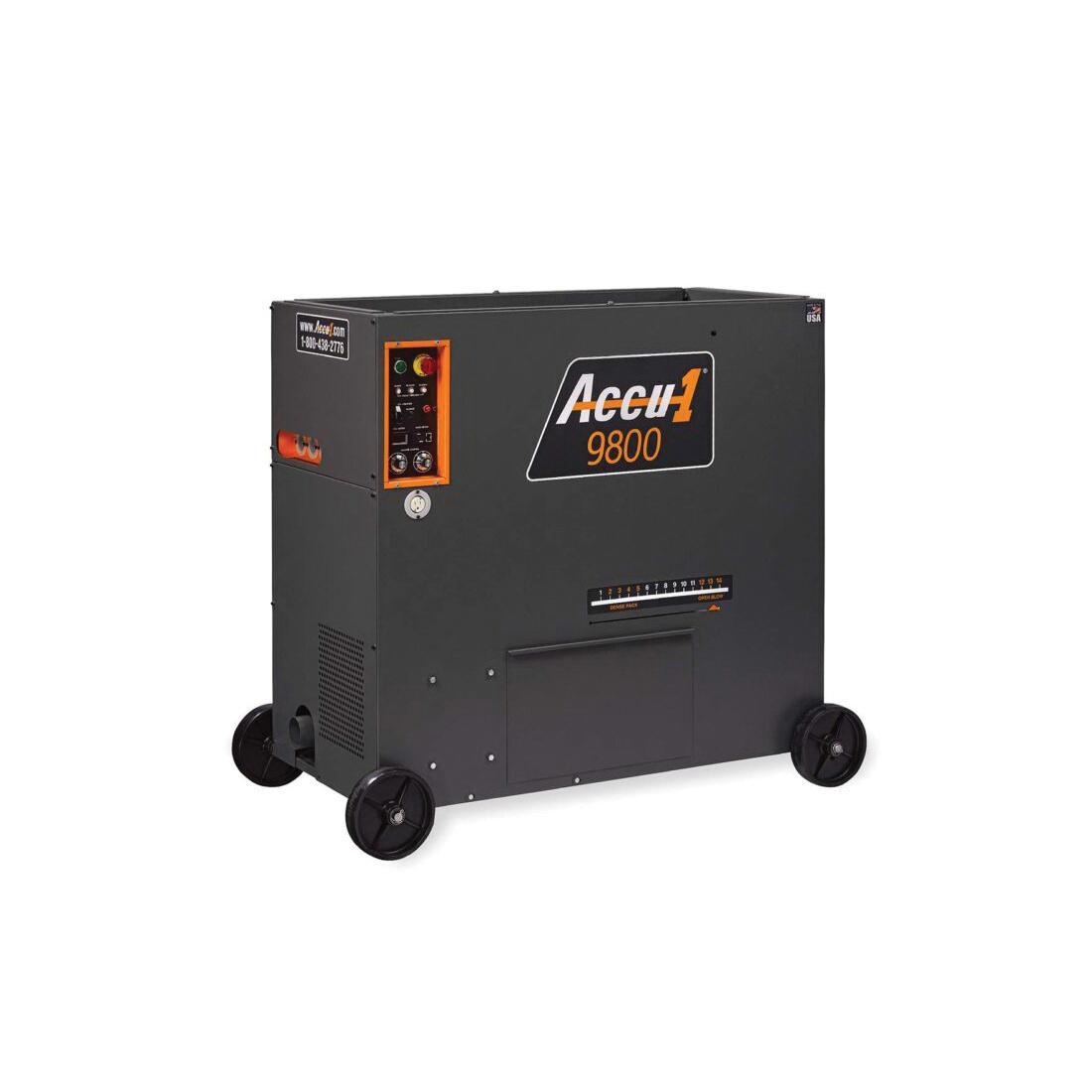

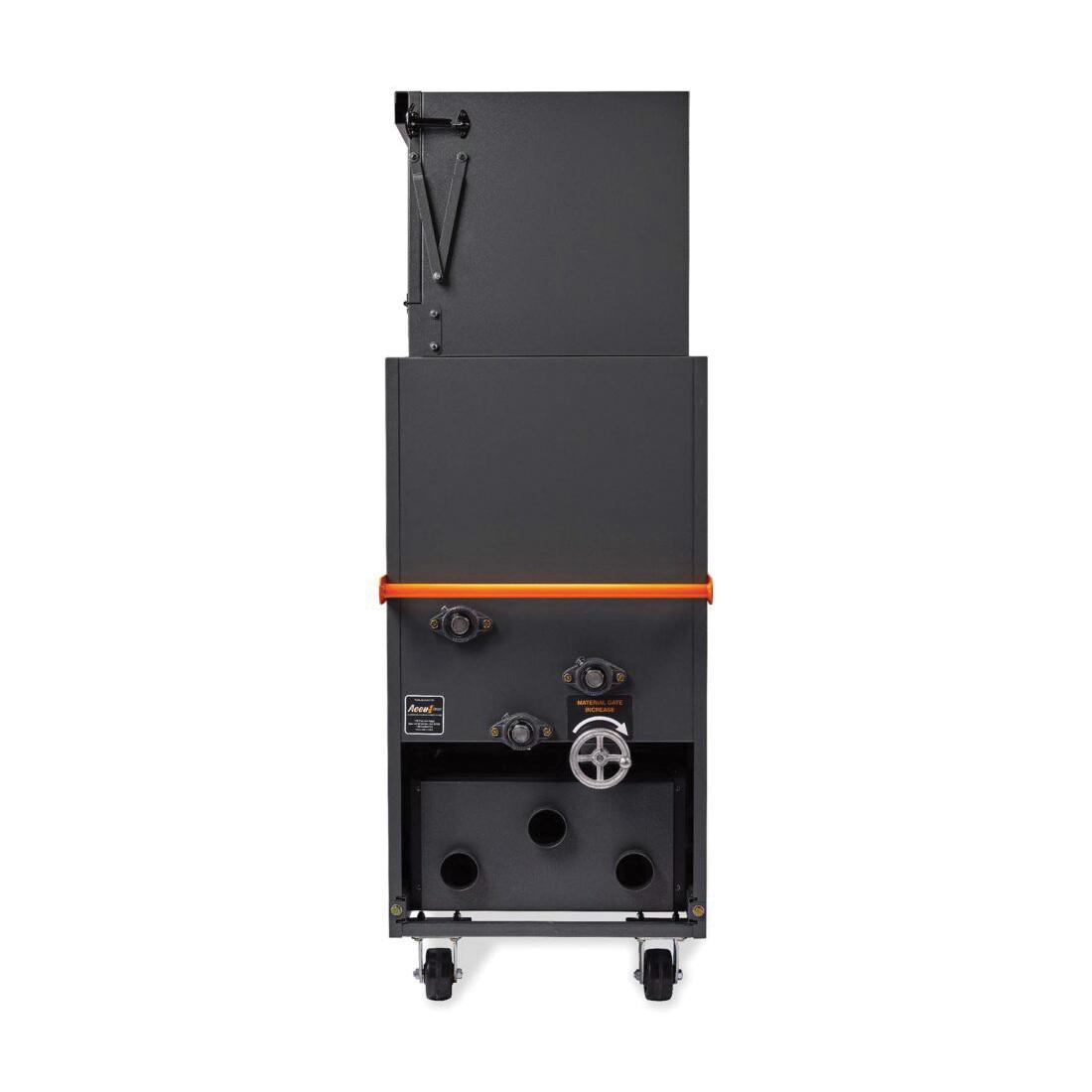

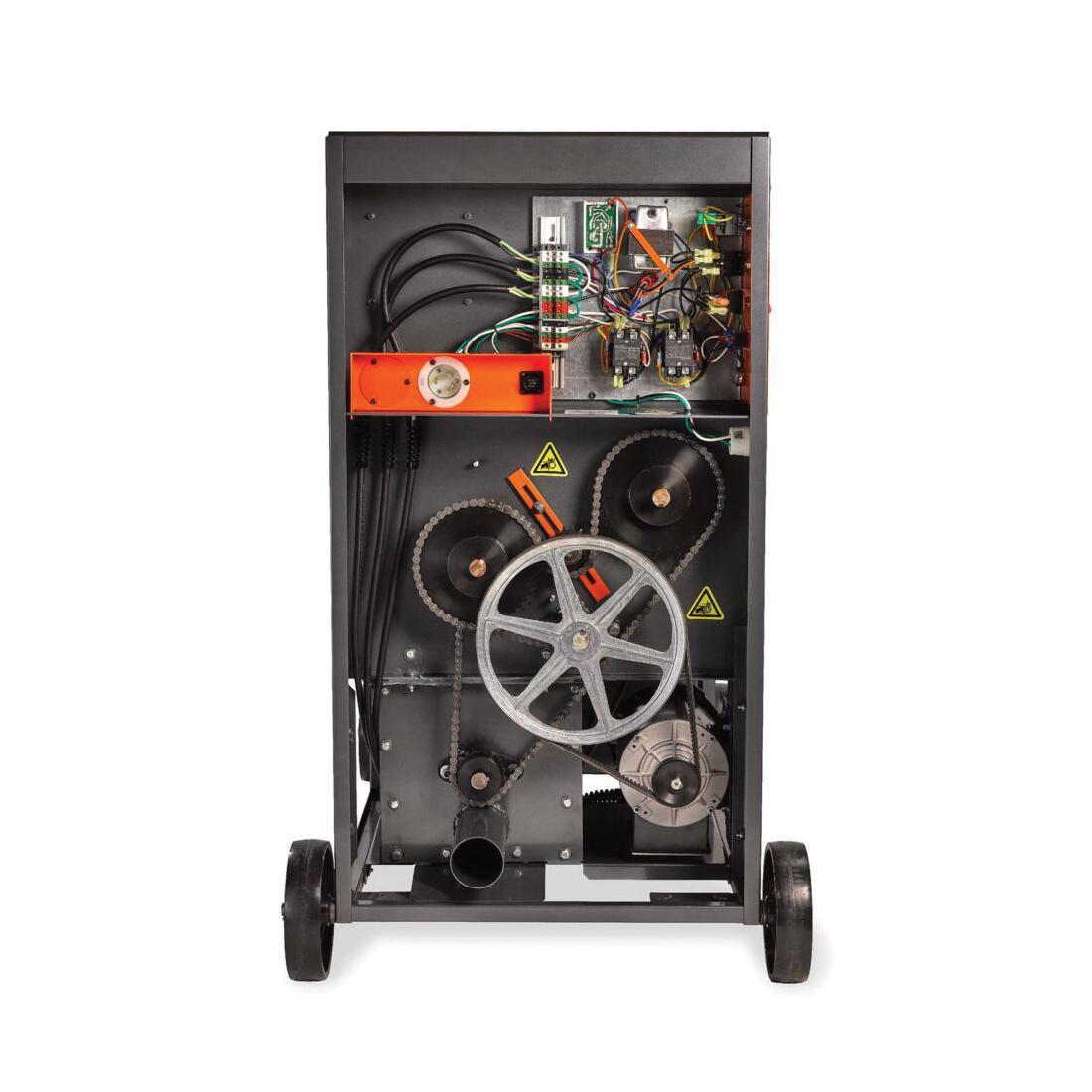

The Accu1® 9800 is a portable, all-fiber, blowing machine. It utilizes a heavy-duty steel gauge auger that can cut through and provide superior agitation for any type of material. Its horizontal feed and circular conditioning create a continual flow of material with no jamming. With a 14 in airlock and adjustable material feed, it can handle any type of application. By incorporating side door access and slide out airlock, servicing the 9800 is easy and efficient. The 9800 comes standard with dual variable-speed high-velocity blowers. The safety cage top with hinged opening makes filling the hopper a safe and easy process.
Accu1® Insulation Blowing Machine, Hopper Capacity: 15 cu-ft, 220 V, 50 Hz, 1.5 hp, Outlet Port Size: 3 in, Blower Specifications: Dual High-Velocity, Welded Steel Housing, 26 in OAW, 44 in OAH, 48 in OAD, 14 in Dia Airlock, 3300 lb/hr Cellulose, 1100 lb/hr Fiberglass, 1800 lb/hr Rockwool Production Rates, 650 lb Weight
| Additional Information | : | 14 in Dia Airlock, 3300 lb/hr Cellulose, 1100 lb/hr Fiberglass, 1800 lb/hr Rockwool Production Rates, 650 lb Weight |
| Blower Specifications | : | Dual High-Velocity |
| Frequency Rating | : | 50 Hz |
| HP Rating | : | 1.5 hp |
| Hopper Capacity | : | 15 cu-ft |
| Housing Material | : | Welded Steel |
| Outlet Port Size | : | 3 in |
| Overall Depth | : | 48 in |
| Overall Height | : | 44 in |
| Overall Width | : | 26 in |
| Voltage Rating | : | 220 V |
- Modular component design
- Hinged, grated hopper guard top
- 1.5 hp, 1 ph, farm-duty drive motor
Instruction/Installation Manual
Video Link
