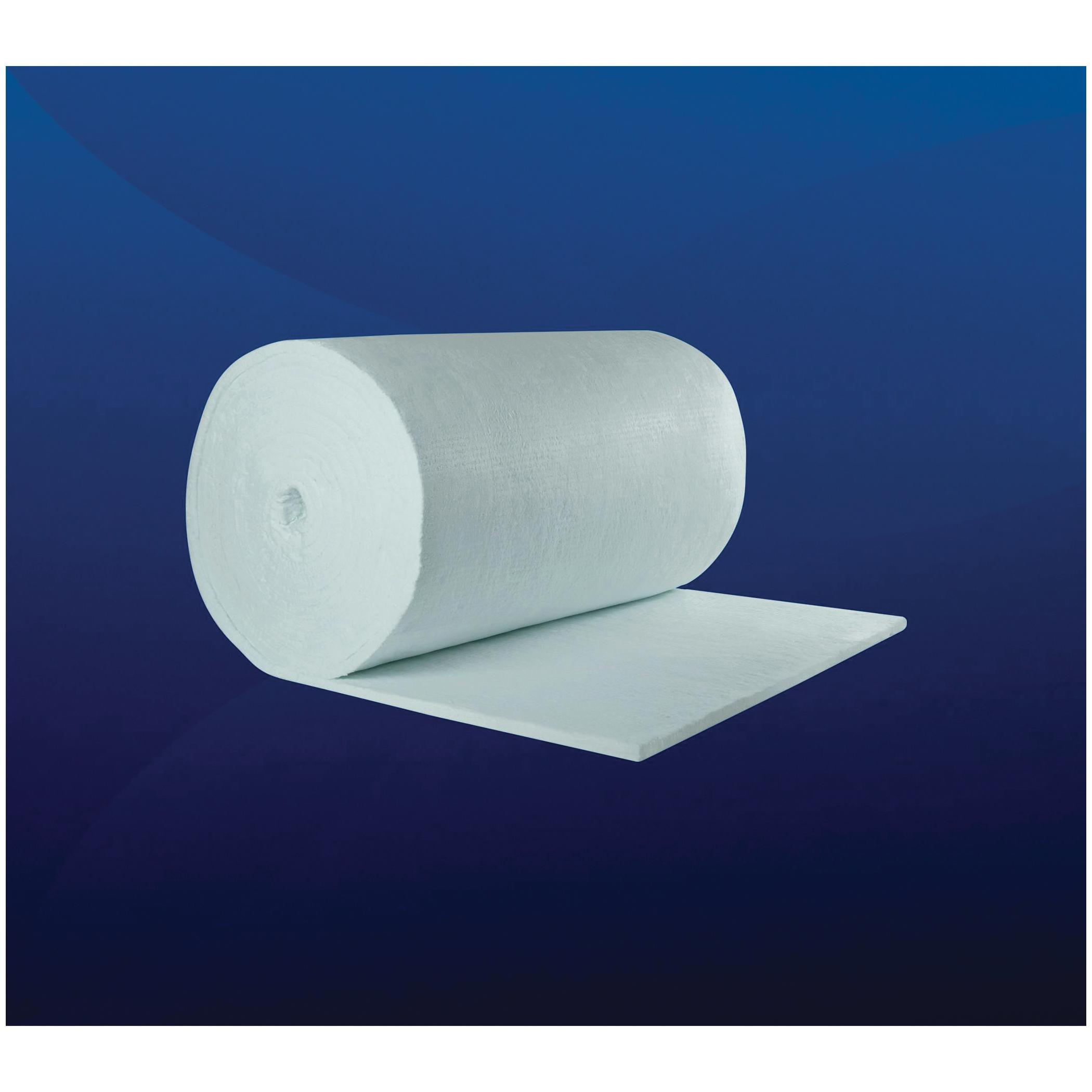

NUTEC SuperMag 2200 Series CF8P248BS Low Bio-Persistence Blanket, 2 in Thick, 48 in W, 12-1/2 ft L, 128 sq-in/lb Density
NUTEC SuperMag 2200 Series CF8P248BS Low Bio-Persistence Blanket, 2 in Thick, 48 in W, 12-1/2 ft L, 128 sq-in/lb Density- Manufacturer: NUTEC Group
- Brand: NUTEC
- Item ID: 3MJCNUCF8LB2X48X12-1/2SM
- MPN: CF8P248BS
SuperMag 2200 blankets are made from long-strand spun, fine low bio-persistence (LBP) fibers with lower shot-content forming a flexible needled product with high-strength and superior thermal properties at temperatures up to 2200 deg F (1200 deg C). The strong needling of SuperMag 2200 blankets results in a completely inorganic, binder-free product that produces no smoke/outgassing. SuperMag 2200 is considered a cost-effective alternative to refractory ceramic fiber (RCF) products for applications up to 2200 deg F (1200 deg C) and is available in a range of thicknesses and densities.
NUTEC Low Bio-Persistence Blanket, SuperMag 2200 Series, 2 in Thickness, 48 in W, 12-1/2 ft L, 128 sq-in/lb Density, 2200 deg F, 10.3 psi Tensile, Ceramic Fiber, White, 3 to 4 um Dia Average Fiber
| Additional Information | : | 3 to 4 um Dia Average Fiber |
| Color | : | White |
| Density | : | 128 sq-in/lb |
| Length | : | 12-1/2 ft |
| Material | : | Ceramic Fiber |
| Series | : | SuperMag 2200 Series |
| Temperature Rating | : | 2200 deg F |
| Tensile Strength | : | 10.3 psi |
| Thickness | : | 2 in |
| Width | : | 48 in |
- Low thermal conductivity and shrinkage
- High-tensile strength
- Thermal shock-resistant
- Chemical corrosion-resistant
- Completely inorganic
- Contains no asbestos
- Excellent sound absorption
- Flexible, lightweight and easy-to-install
Specification Sheet
