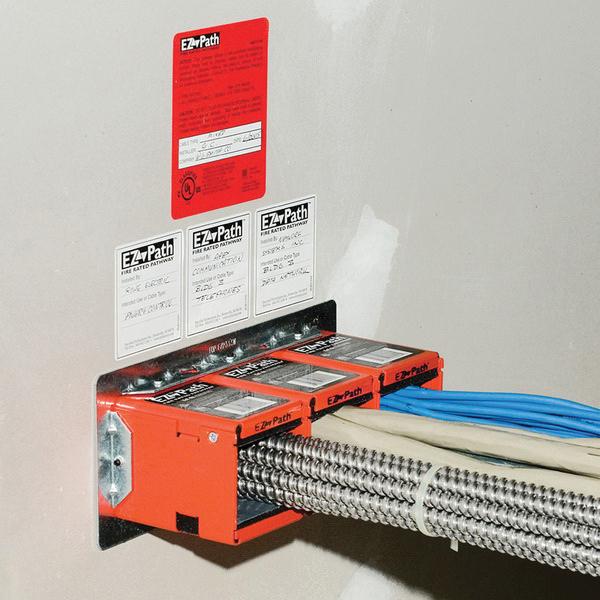

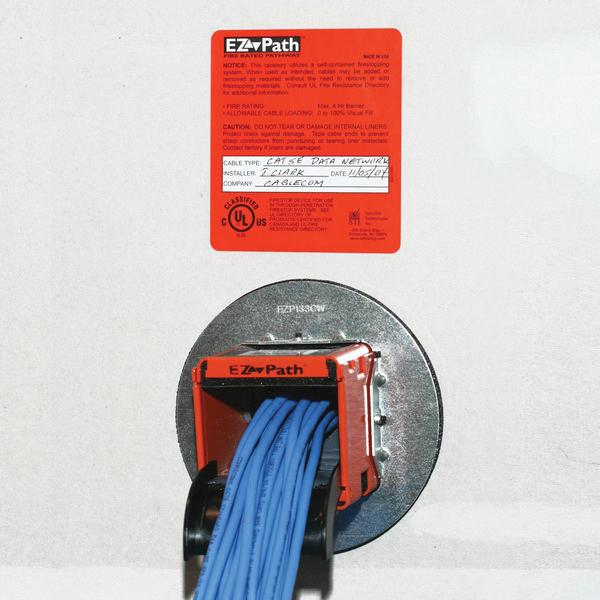

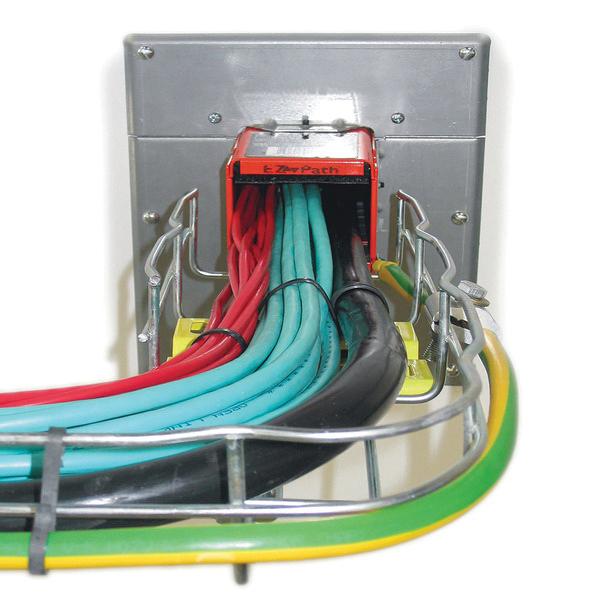

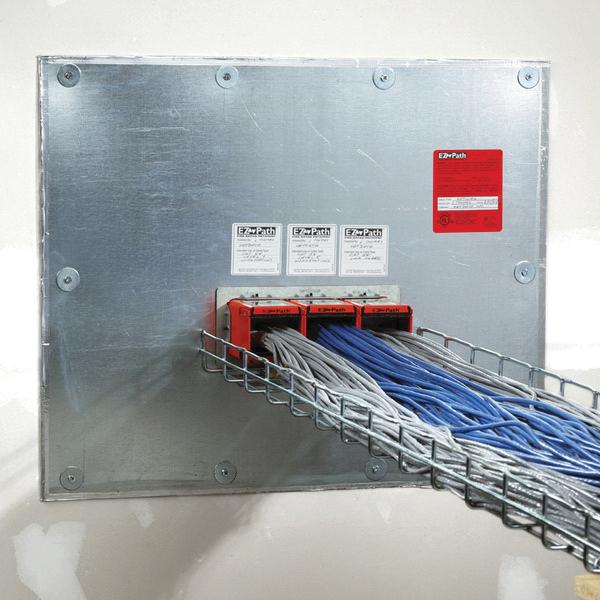

The EZ Path® Series 33 Fire-Rated Pathway is a maintenance-free pathway solution for moderate cable volumes through fire-rated walls and floors. The Series 33 incorporates built-in intumescent pads that automatically adjust to cable fills. When exposed to flame and high temperatures, the intumescent pads expand to form a dense insulative char that prevent the passage of smoke and flame.
EZ Path® Fire-Rated Pathway, Series: 33 Series, Steel, Galvanized, Orange, 3 in Width, 3 in Height, Additional Information: 10-1/2 in L, -10 to 120 deg F Temperature Rating
| Additional Information | : | 10-1/2 in L, -10 to 120 deg F Temperature Rating |
| Color | : | Orange |
| Finish | : | Galvanized |
| Height | : | 3 in |
| Material | : | Steel |
| Series | : | 33 Series |
| Width | : | 3 in |
- Self-sealing design provides exceptional fire and smoke leakage ratings
- Designed for new and existing conditions
- Full suite of plate configurations for any field scenario
- Allows for easy moves, adds and changes
Instruction/Installation Manual
