Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity

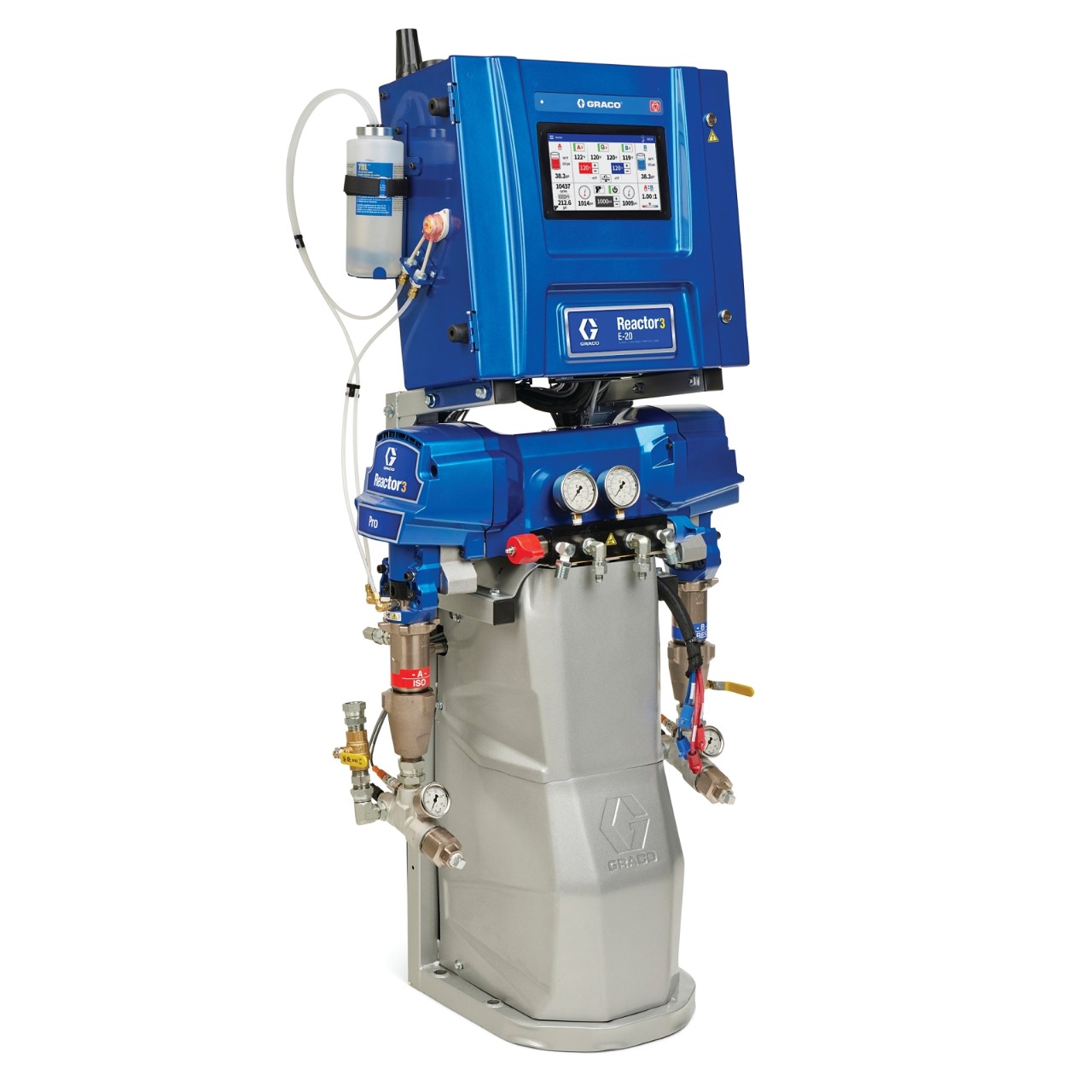

GRACO® REACTOR 3 E-20 Pro, Proportioner
- Touchscreen Advanced Display Module (ADM) - Large new touchscreen interface, Intuitive operation and navigation, All spray operations from one screen
- Independent Hose Control - Control A and B materials to different temperatures for improved pressure balancing, Optimizes yield
- Advanced Electric Design - Brushless motor for improved pressure/flow performance, New temperature control boards for independent hose heat, Voltage jumpers for easy changing between voltages, Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly
- Reduced Size - Reduced footprint provides additional room in your rig, Compact design protects the flow meters and hose connections from being damaged in your rig
- 56A 1–ph, 36A 3–ph DELTA, 24A 3–ph WYE Amperage (A)
- 50/60 Hz Frequency
- No Hose Hose Heating Type
- 20 lb/min Maximum Flow Rate
- 190 deg FMaximum Fluid Temperature
- 120 Maximum Operating Temperature ( deg F)
- 14 Mpa Maximum Spray Pressure
- 2000 psi Maximum Spray Pressure
- Reactor 3 Model
- 7 kW Power Rating
- No Transfer Pump
- 200-240 VAC, 1–ph, 200-240 VAC,3–ph DELTA, 350-415 VAC,3–ph WYE Voltage (V)
- 260 lb weight
- 15 in Overall Depth
- 56.5 in Overall Height
