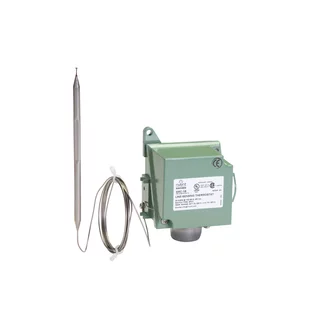

nVent RAYCHEM AMC-1B is a line-sensing thermostat designed to control heat tracing systems in non-hazardous locations. It senses pipe or tank wall temperatures, used to control a single heat tracing circuit or switch multiple circuits with a contactor, it has an adjustable set point. Also used to indicate low temperature or high temperature alarm conditions.
Raychem®, Line-Sensing Thermostat, 22 A Amperage Rating, Aluminum
| Amperage Rating | : | 22 A |
| Material | : | Aluminum |
- 3/4 in NPT conduit Hub
- 25 to 325 deg F (–4 to 163 deg C) Set point range
- –40 to 420 deg F (–40 to 215 deg C) Sensor exposure limits
- –40 to 160 deg F (–40 to 71 deg C) Housing exposure limits
- SPDT Switch
- ±6 deg F (±3.3 deg C) Accuracy
- Deadband 2 to 12 deg F (1.1 to 6.7 deg C) Deadband
- ±3 deg F (±1.7 deg C) Set point repeatability
- Fluid-filled (silicone) bulb and 9 ft (2.7 m) capillary Sensor type
- Stainless Steel Sensor Material
- Simple to install and operate, single cable entry through 3/4 in/19 mm NPT conduit hub
- Reliable during long life
- Energy saving, line sensing control thermostat
- Mechanical Thermostat Type
