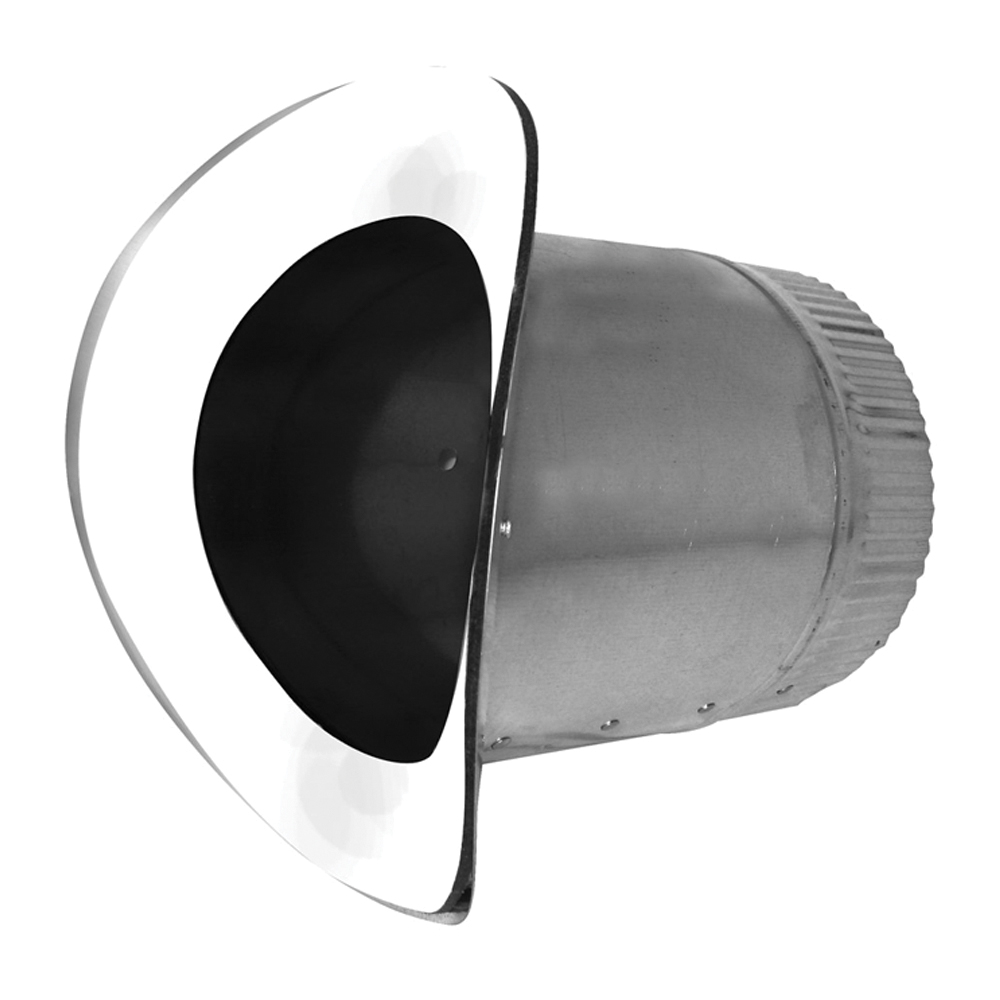

Southwark 26 GA 4-in Round Pipe Saddle Takeoff

Southwark 26 GA 4-in Round Pipe Saddle Takeoff
  • Manufacturer: Southwark Metal Manufacturing
  • Brand: Southwark
  • Item ID: 3MKPattrp4
  • MPN: ATTRP4
  • LOG IN TO VIEW
  • PRICING & AVAILABILITY

Southwark Round Pipe Saddle Take-Off, Series: ATTRP, 4 in Fitting, Round, Steel, Hot-Dipped Galvanized, Silver, 26 ga

Color      :      Silver
Finish      :      Hot-Dipped Galvanized
Fitting Size      :      4 in
Gauge      :      26 ga
Material      :      Steel
Series      :      ATTRP
Shape      :      Round
  • 1/2 in overlap with 1/8 in rivets
  • RL-2 rivet seam (+/- 4 in WG)
  • 1-1/4 in crimp length
  • 5-3/4 - 14-3/4 in tube length
  • Gasket 1-1/2 in W and 1/8 in THK, made with high tack adhesive-coated neoprene foam
  • Four 1/8 in holes in gasket for sheet metal screw attachment
  • ATDRP features a two quad damper (26 with 18 ga handle secured with wingnut)
  • 7 - 20 in pipe size
  • For used to transition from a large duct to a smaller round duct
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Southwark_ATTRP4_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Southwark_ATTRP4_Full_Engineering_Drawing.pdf
