ABSORPTION PLUS IMAGINE PANELS

Imagine acoustical panels allow total design flexibility with high resolution imaging for acoustical wall, ceiling, cloud, baffle and tack panels. Standard panels are composed of a semi-rigid fiberglass core board with a minimum of 25% recycled glass content. Panel edges are available plain or chemically hardened for greater durability. The imaged acoustical facing material is bonded to the panel using a low VOC water-based adhesive. Standard and optional panel facings are available from a range of industry leading manufacturers. Imagine panel visual options are endless and can include: wood, stone, brick, tile, marble, natural scene, logo portrait, structure, etc.

Features and Benefits:

  • Panel image flexibility for desired visual impact
  • Superior acoustic performance enhances room acoustics through reduced reverberation.
  • Custom fabricated panels provide unlimited size, shape, (geometric and curved capability) thickness and edge detail.
  • Standard 100% polyester faced composite panels are Class A fire rated per ASTM E84 providing a fire safe
    interior finish material per code requirements.
  • Imagine insulation panels can also save energy.
  • Imagine panel lead time is 4 - 6 weeks after image approval.
  • Panels ship in durable wood crates, virtually eliminating damage, claims and resulting project delays.
  • Mounting options to suit any application requirement.


Absorption Plus Availability

Absorption Plus Imagine Panels are used in conjunction with Absorption Plus Wall Panels, High Impact, Tack and Baffle panel applications.
Standard Panel Sizes:1 1/2, 2 and 4" thick, up to 4' wide and 10' long
Edge Treatments: Square, Bevel, Chamfer and Radius, plain or chemically hardened


Performance Compliance Data

Base Board: Complies to ASTM E84 / UL 723 - Flame Spread 25, Smoke Developed 50, Class A fire rated
SCS Certified: Minimum 25% Recycled Content
Thermal Resistance: R Value 4.3 per inch at 75°F Mean Temp.
Nominal Density: 6 - 7 pcf
Facings: include 100% polyester fabric such as Guilford of Maine FR701, and other industry leading manufacturers.
Adhesive: Water based fire retardant, low emitting VOC complying with LEEDTM IEQ Credit 4.1
ASTM E84 - Flame Spread 5, Smoke Developed 0
(Properties as reported by manufacturers)
Sound Absorption Coefficients, Mounting Type A
per ASTM C423 and ASTM E795 (Composite panel)



Additional Information:

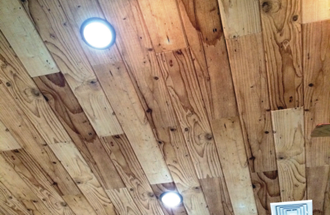

Imagine Panel
