What Is Corrosion Under Insulation and Why Does It Matter?

Corrosion under insulation (CUI) is one of those problems you often can't see coming until it's too late. Your insulation can trap moisture against metal surfaces, creating perfect conditions for corrosion to develop undetected — and costs add up fast.

You could be facing repair expenses, lost production from unplanned shutdowns, and increased inspection labor. In severe cases, regulatory fines can compound these costs. However, you can prevent CUI by understanding the risk factors and taking the right steps.

Learn what causes corrosion under insulation in pipes and equipment, how to spot the warning signs, and how to build a prevention strategy that protects your operation.

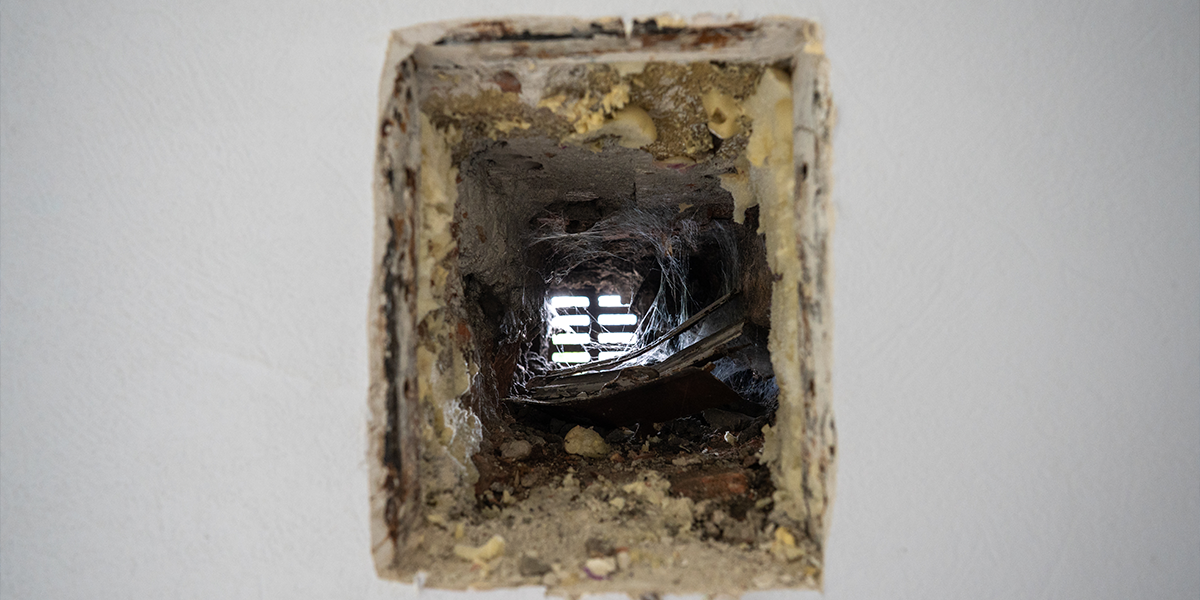

What Is Corrosion Under Insulation?

Corrosion under insulation is an electrochemical process that requires both water and oxygen. Typically, the insulation itself doesn't cause the corrosion. Instead, it creates an environment where moisture can accumulate and stay in contact with metal surfaces long enough for corrosion to take hold. In severe cases, corrosion can lead to consequential loss of system integrity.

Maintenance personnel can't always visually examine these surfaces, making it hard to identify the onset.

How Trapped Moisture Becomes a Costly Problem

Understanding what causes corrosion under insulation requires knowing how moisture gets there. Water can penetrate insulation systems through several routes:

• Rainwater or washdown water seeps through damaged or missing jacketing seals.
• Condensation forms when cold pipes meet humid air.
• Poor installation creates gaps where moisture infiltrates.
• Temperature cycling causes insulation materials to expand and contract, creating new entry points.

Once moisture enters, the insulation holds it against the metal surface, creating a microclimate that accelerates corrosion. The metal can't dry out, and corrosion continues around the clock.

Undetected CUI can lead to pipe ruptures, causing unplanned system shutdowns and work stoppages. Moisture damage ranks among the most common insulation issues facilities face, making prevention critical.

The Critical Threats of CUI to Your Operation

The hidden nature of CUI is what makes it so dangerous. Corrosion progresses silently beneath the insulation, and by the time visible signs appear, significant damage has already occurred.

Financial Impacts

The financial toll of CUI hits from multiple directions. Direct costs include repairing or replacing corroded pipes, vessels, and equipment. These expenses can be substantial when you factor in the specialized materials and labor required for industrial systems.

Lost production costs compound those direct expenses. Your facility sits idle during unplanned shutdowns for repairs. This downtime creates a ripple effect, disrupting production schedules and delivery commitments. As you implement more frequent monitoring to catch problems before they escalate, inspection and maintenance costs increase. If leaks result in compliance violations, regulatory fines add further costs.

Safety and Environmental Risks

Corrosion under insulation is dangerous because of what can happen when corroded equipment fails. Sudden, catastrophic failures can release hazardous materials into the work environment. Toxic substances, flammable liquids, or high-pressure steam pose immediate danger to personnel.

Slow leaks present their own hazards. These materials cause contamination that requires expensive cleanup. Undetected leaks create secondary hazards like slick surfaces, vapor clouds that pose inhalation risks, or structural damage to equipment. Environmental contamination can spread to soil and groundwater, triggering regulatory action and damaging your operation's reputation.

CUI Key Risk Factors

CUI doesn't happen everywhere. Certain conditions dramatically increase the risk. Identifying your most vulnerable assets lets you focus prevention efforts where they matter most.

Critical Temperature Range

Temperature plays a decisive role in CUI development. Systems that operate between freezing and evaporating temperatures face the highest risk. This creates ideal conditions for moisture to remain liquid and active on metal surfaces.

Pipes and equipment that cycle through this temperature range are especially vulnerable. Thermal cycling causes expansion and contraction that can compromise seals and create new entry points for moisture.

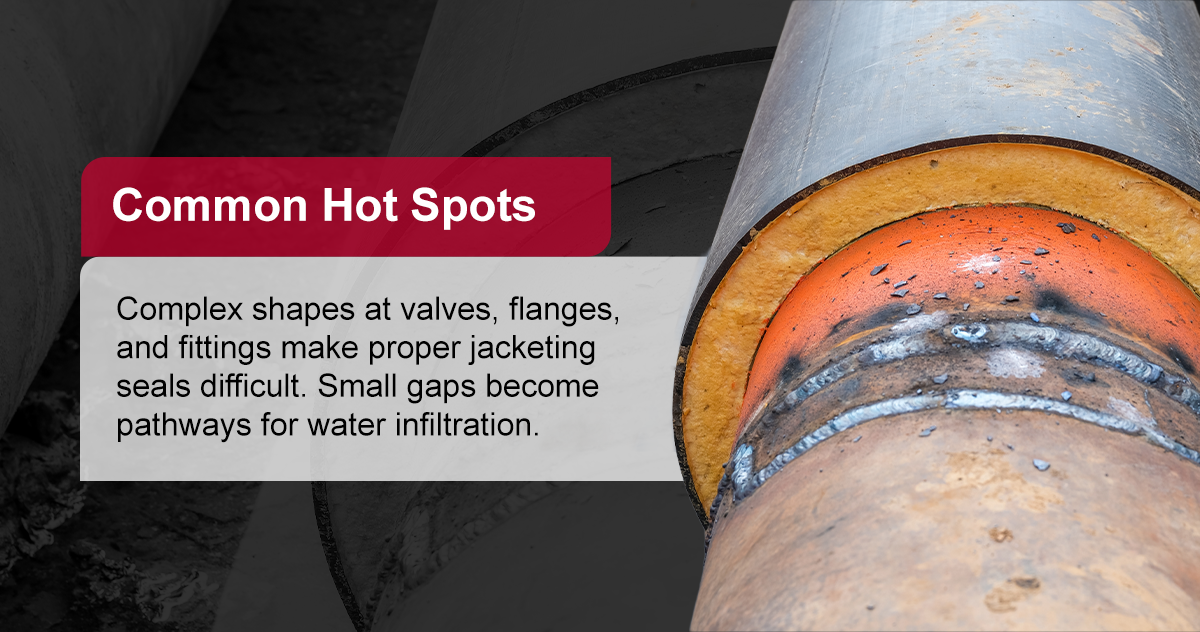

Common Hot Spots

Certain physical locations are far more susceptible to CUI. Complex shapes at valves, flanges, and fittings make proper jacketing seals difficult. Small gaps become pathways for water infiltration.

Penetrations through the insulation system pose similar challenges. Water can enter wherever pipe supports, nozzles, and instrument lines create discontinuities. Termination points are particularly vulnerable without proper sealing.

Low points in horizontal piping deserve special attention. Water naturally flows to these locations and pools, maintaining prolonged contact with the metal surface. Areas with damaged or missing insulation allow direct moisture exposure, accelerating corrosion.

Warning Signs of Corrosion Under Insulation

Catching CUI early requires knowing which signs of corrosion under insulation to look for. When you implement regular inspection protocols, you can spot problems before failures occur. Visual inspection serves as your first line of defense, revealing external indicators of hidden corrosion. To prioritize your efforts, risk-based inspections identify which systems need the most attention.

Watch for these visible warning signs during inspections:

• Rust-colored stains: Staining on the outer jacketing signals that corrosion products are leaking through.
• Blistering or bulging jacketing: Warped areas on metal or PVC jacketing indicate that corrosion is creating pressure or moisture has accumulated inside.
• Sagging insulation sections: Noticeably drooping areas suggest the insulation has become waterlogged and heavy.
• Damaged or missing seals: Compromised seals at joints and seams provide clear evidence that moisture can enter.
• Visible moisture or pooling: Dripping water or pooling around termination points confirms that water is actively present in the system.

For deeper insight, advanced detection methods like ultrasound-based systems, eddy current testing, and infrared thermography can identify corrosion through the insulation itself or detect thermal performance changes that indicate moisture accumulation.

How to Prevent Corrosion Under Insulation

A proactive, multilayered strategy is the only reliable way to manage CUI. Your industrial insulation systems need all three of the following components working together.

1. Quality Protective Coatings

The first line of defense against CUI is a high-quality protective coating applied directly to the metal surface before installing the insulation. This coating creates a barrier that prevents moisture from reaching the metal, even if water penetrates outer insulation layers.

The coating must be compatible with your operating temperatures and the specific environment. Proper surface prep is also vital to get the bonding and long-term performance your system needs.

2. Right Type of Insulation Material

Material selection significantly impacts CUI risk. Closed-cell, hydrophobic materials limit water absorption and prevent moisture from reaching the metal surface. The right material choice also helps prevent common issues like condensation and thermal bridging.

Mineral wool insulation, for example, offers moisture-resistant properties for systems operating in the critical CUI temperature range. The material's structure allows moisture to drain or evaporate rather than pooling against the pipe.

Your selection should account for operating temperature, exposure to weather, potential mechanical abuse, and whether the system experiences thermal cycling.

3. Professional Installation

Even the best materials and coatings will fail if installation isn't done right. Proper installation means sealing all joints, seams, and penetrations to prevent moisture entry. Gaps and poorly fitted sections create vulnerabilities where CUI problems start.

Custom-fabricated parts ensure a precise fit that eliminates gaps. When you work with professional fabrication services, you get components shaped exactly to your system's specifications, leaving no room for moisture to infiltrate.

Installation quality matters as much as material quality. Professional installers understand the techniques needed to create weathertight seals, properly overlap jacketing, and secure termination points.
