Aerogel Insulation Specification and Installation Guide

In demanding industrial environments and space-constrained facilities, traditional insulation often presents a dilemma — compromise thermal performance or sacrifice valuable physical space. Fortunately, advanced aerogel insulation offers a superior solution, delivering optimal thermal protection in a fraction of the thickness.

While aerogel consistently outperforms standard insulation and mineral wool in challenging conditions, it requires a specialized approach. To ensure a long-lasting, compliant system that maximizes its benefits, understanding aerogel installation best practices is essential.

When to Use Aerogel Insulation

Aerogel insulation excels in applications where space is at a premium, but thermal performance cannot be compromised.

In contrast, conventional insulation materials like mineral wool often require significant thickness — several inches or more — to effectively mitigate extreme or fluctuating temperatures. This bulk can be problematic in congested industrial settings, such as densely packed factories or facilities with closely routed pipes, where every inch counts.

Aerogel provides a compelling solution, delivering equivalent or superior thermal resistance with a minimal footprint, often requiring less than an inch of material. Beyond its space-saving advantage, aerogel insulation is particularly favored in demanding environments like refineries, chemical plants, and steam lines. Here, pipes are frequently exposed to moisture, and the cost of large-volume insulation, both in material and installation complexity, can be substantial.

A growing number of industries are transitioning to aerogel due to its exceptional efficiency, compact profile, extended durability, and inherent hydrophobic properties, making it an ideal choice for challenging and corrosive conditions.

Understanding Aerogel Insulation Specifications

Selecting the appropriate aerogel product is critical for optimizing performance and ensuring project success. The specific form and thickness required will depend on your site's unique environmental conditions, operating temperatures, and precise measurement requirements.

To accurately specify your aerogel insulation, consider the following:

• Understand operating temperatures: The thermal demands of your application dictate the appropriate aerogel type. For high-temperature environments, such as those requiring fire protection or heat management, Pyrogel® is the preferred choice due to its superior thermal stability. Conversely, for cryogenic or extremely cold applications, Cryogel® is engineered to maintain flexibility and performance, even at freezing temperatures.
• Calculate required layers: Aerogel is typically supplied in thin blankets. Instead of being sold by the inch, projects often require multiple layers to achieve the necessary total thermal resistance. Precise calculation of these layers is essential to efficiently meet insulation targets.
• Verify safety and performance specifications: Always confirm that the selected aerogel product meets critical safety and performance criteria. Look for products rated as hydrophobic to prevent moisture ingress and mitigate corrosion under insulation (CUI), and noncombustible to enhance fire safety. These specifications are vital for safeguarding assets and personnel.

Once your aerogel specifications are confirmed and materials ordered, the subsequent step focuses on thoroughly preparing your team and worksite to ensure a safe and effective application process.

How to Install Aerogel Insulation

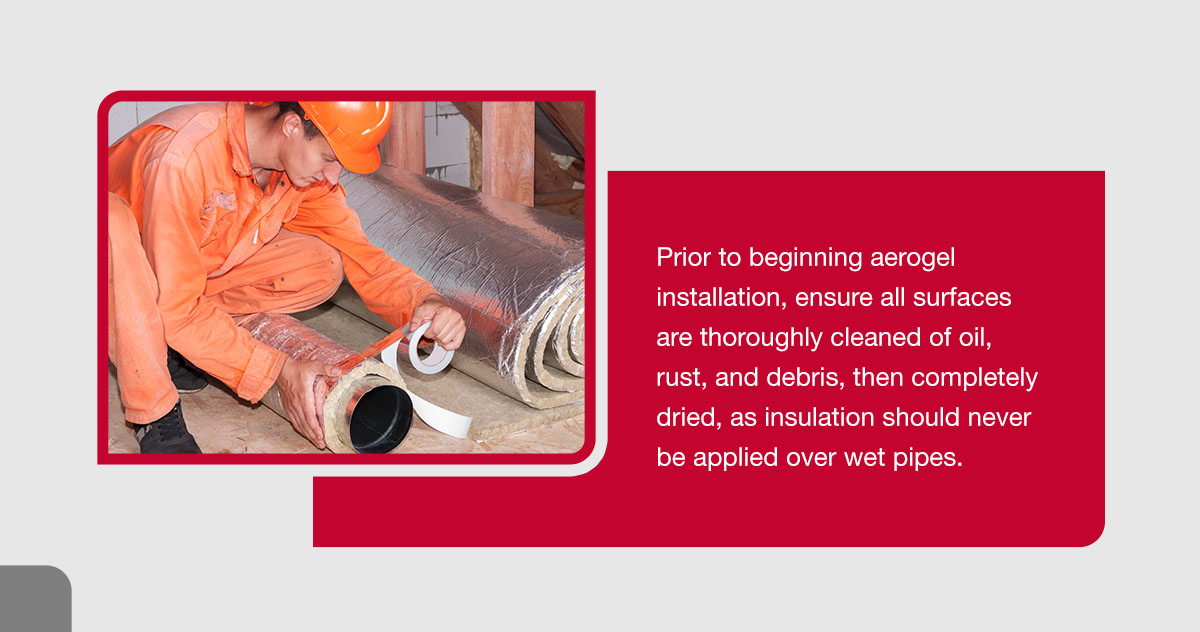

Prior to beginning aerogel installation, ensure all surfaces are thoroughly cleaned of oil, rust, and debris, then completely dried, as insulation should never be applied over wet pipes.

Safely store aerogel rolls covered and off the ground until needed. During handling and cutting, be aware that aerogel creates fine dust that can be irritating — protect yourself by wearing long sleeves, a dust mask, and safety gloves.

While specific product applications and site conditions may introduce variations, these steps outline the fundamental process for effective aerogel insulation installation. Adhering to these aerogel installation best practices will ensure optimal performance and a secure system:

• Accurate measurement: Measure the circumference of the pipe or surface to be insulated with precision. Add an overlap of approximately 1-2 inches to this measurement. This overlap is crucial for creating a tight, continuous seal that prevents thermal bridging.
• Clean cutting: Utilize appropriate tools such as heavy-duty shears, industrial scissors, a sharp utility knife, or a hot knife for cutting aerogel blankets. Avoid using saws, which can generate excessive dust. Make clean, straight cuts to ensure proper fit and minimize material waste.
• Grooving for smaller diameters: For pipes with smaller diameters where the aerogel blanket might be too rigid to conform smoothly, create shallow "V" shaped grooves on the back of the insulation. This technique allows the material to bend without creasing or cracking, ensuring a snug fit around tight curves.
• Secure application: Wrap the aerogel blanket firmly around the pipe or surface. Temporarily secure it using high-quality insulation tape or wire ties spaced every 12 inches. This temporary fastening prevents the insulation from unwrapping during subsequent steps and facilitates a smooth installation process.
• Final sealing and protection: Once the aerogel is securely in place, apply an appropriate jacketing material, such as aluminum or stainless steel cladding. This protective layer shields the aerogel from mechanical damage and environmental elements. Finish the installation by meticulously sealing all edges and seams of the jacketing with high-quality tapes or sealants. This final seal is critical for preventing moisture ingress and air leakage, which can compromise thermal efficiency.

Always consult the aerogel manufacturer's specific data sheets and installation guidelines for your chosen product.

Installation Techniques for Pipes, Fittings, and Vessels

Effective aerogel installation on complex geometries, such as pipes, fittings, and vessels, requires specialized techniques to maintain thermal integrity and minimize heat loss. Adhere to these best practices for optimal performance in diverse applications:

• Straight pipe sections: Wrap the aerogel insulation tightly around the pipe, ensuring a snug fit. Secure all longitudinal seams to prevent air gaps and thermal bypass.
• Elbows and 90-degree turns: Insulating bends require a precise approach. Rather than attempting to force a flat sheet, cut the aerogel blanket into carefully shaped wedge or gore sections. These pieces should fit together like a puzzle, meticulously covering the elbow's curvature with minimal gaps.
• Valves and flanges: For components requiring frequent inspection or maintenance, such as valves and flanges, avoid permanent insulation. Instead, fabricate removable insulation blankets or boxes using aerogel. These custom covers should be secured with straps or fasteners to allow easy removal and reinstallation.
• Multilayer applications: When the thermal requirements necessitate two or more layers of aerogel insulation, it is essential to stagger all seams. This technique prevents direct thermal pathways through the insulation layers, significantly reducing heat loss and eliminating potential weak points that could otherwise compromise the system's overall efficiency.

Mastering these specific cutting, shaping, and staggering techniques is fundamental to achieving and maintaining the highest levels of thermal efficiency, effectively preventing heat transfer, and eliminating gaps or cold spots within your insulated system.

Avoiding Common Aerogel Insulation Mistakes

Optimal aerogel performance relies on meticulous handling and installation, primarily ensuring an airtight and dry environment. Overlooking critical details can compromise thermal efficiency and system longevity. Avoid these common mistakes:

• Failing to stagger multilayers: Aligned seams in multi-layer installations create thermal bridges, allowing heat to escape. Always offset seams between layers for a continuous thermal barrier.
• Leaving gaps between sections: Unsealed spaces provide thermal bypass. Seal gaps tightly and address any minor gaps immediately.
• Neglecting proper weather protection: Installing in wet conditions without protection exposes pipes to moisture, risking corrosion under insulation (CUI). Ensure dry, protected installation areas.
• Delaying maintenance: Skip routine checks for dust shedding or cladding damage, and moisture ingress can occur. Regularly inspect the protective jacketing for any breaches.

Beyond proper installation and consistent visual inspections are key to preventing moisture intrusion and long-term system failure. Consulting an experienced aerogel insulation expert is highly recommended to ensure proper application.
