Aerogel vs. Mineral Wool for Industrial Insulation

Insulation is critical in plants, mills, and refineries for conserving energy and maintaining temperature control. The ideal industrial insulation offers durability, thermal efficiency, and long-term sustainability. Finding an effective form of insulation can streamline operations and bring down costs for a better return on investment (ROI).

When protecting vulnerable equipment, the right insulation can make all the difference. Aerogel and mineral wool are two premier types of insulation used in industrial applications. This comprehensive guide compares the two materials according to cost, performance, temperature range, and common applications. Read on to learn about these insulation materials and their strengths to help you determine which is best for your facility.

Comparing Insulation Materials

Aerogel and mineral wool are among the most popular insulation types, particularly in environments with extreme temperatures. These high-performance insulation materials can significantly reduce fire risk, energy loss, and operational costs.

Explore the two materials and their primary applications.

Aerogel

Aerogel is among the best insulation types for industrial piping. To make aerogel, liquid is extracted from a silica-based gel and dried, producing a highly porous material. Also known as frozen smoke, aerogel is one of the lightest solids.

This material often comes in the form of a thin-profile blanket, which can be applied to extreme high and low temperature piping, fireproofing solutions, and corrosion under insulation (CUI) prevention. Aerogel is used to insulate marine piping, medical devices, and spacecraft.

Despite its higher initial costs, aerogel may be more cost-effective over time. Because of its low conductivity, it is a thermally efficient option.

Mineral Wool

Mineral wool is a durable, high-density insulation material favored for its low cost and temperature resistance. There are a few different kinds of mineral wool, though the material typically derives from heat-resistant minerals like volcanic rock or slag. These minerals are heated, spun into fibers, and bound together for pipe sections, boards, wraps, and fabricated fittings.

Mineral wool performs well in high-temperature environments like pipes, tanks, and boilers. You can also find it in floors, walls, attics, roofs, and fire-rated areas. Mineral wool typically contains about 75% post-industrial recycled content, making it an eco-friendly material with inherent fire-resistant qualities.

Choosing Between Aerogel and Mineral Wool

When deciding between aerogel and mineral wool, it is helpful to weigh their benefits side by side. Let's review the two according to the following criteria:

1. Thermal Performance and R-Value

High thermal efficiency is a critical factor in industrial insulation because it minimizes heat transfer and energy consumption. By using R-value, we can measure a material's ability to insulate heat. The higher the value, the greater the thermal resistance.

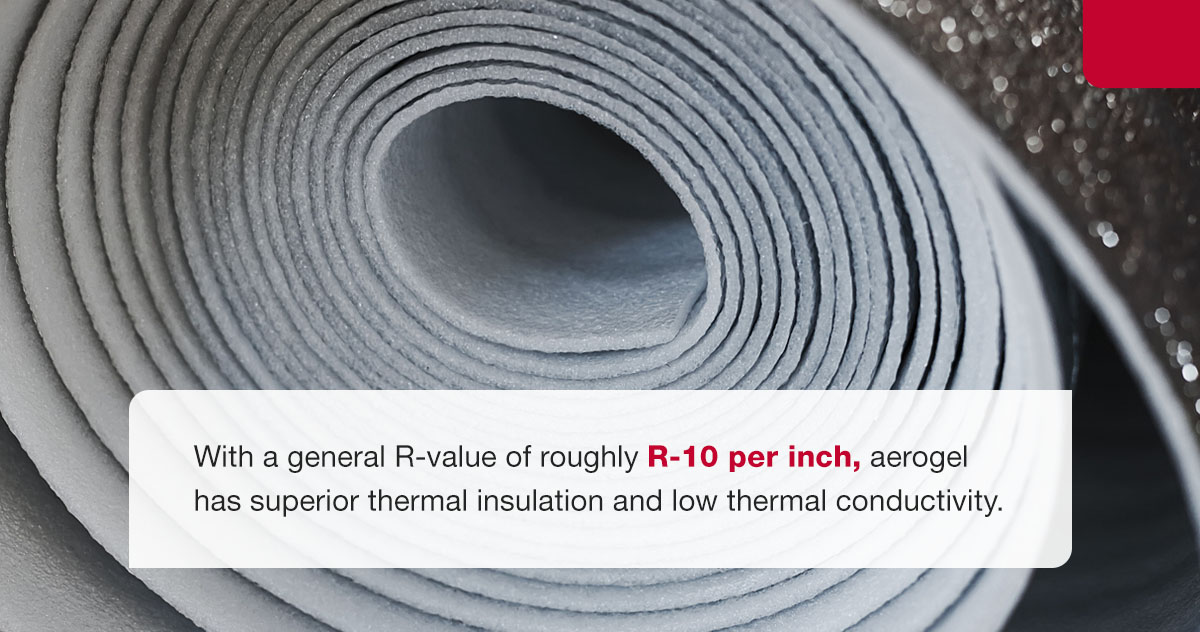

With a general R-value of roughly R-10 per inch, aerogel has superior thermal insulation and low thermal conductivity. With aerogel, facilities can significantly save on heating and cooling bills. Mineral wool, on the other hand, has a value of about R-4, meaning you need more of it to reach high R-values.

2. Thickness and Space Constraints

When it comes to space constraints, aerogel offers better insulation performance per unit of thickness. Because it requires smaller volumes for effective insulation, it is ideal for tight spaces.

Mineral wool is highly affordable, though it requires greater thickness for proper insulation. This material is great for applications where space isn't a limiting factor. Bear in mind that its bulky size may also contribute to higher transport costs and emissions.

3. Corrosion Resistance

Both aerogel and mineral wool prevent condensation and thermal bridging. With these noncombustible insulation materials, you won't have to worry about fire risk or water damage.

Aerogel is a fire-resistant, hydrophobic material that repels water droplets and prevents moisture absorption. Consider using aerogel insulation when CUI is an important factor.

Mineral wool also withstands extreme temperatures and will not melt or catch on fire, making it suitable for fire-rated applications. Mineral wool is fairly water-repellent and doesn't pose much risk of moisture damage, though if it gets wet, it should be thoroughly dried to maintain thermal performance.

4. Installation and Handling

Aerogel often comes in the form of lightweight, flexible blankets that can be cut to fit various applications, such as pipe wrapping. One benefit of aerogel is that it requires little to no maintenance over the years. This material, though versatile, is fragile and calls for careful handling.

Mineral wool is fairly safe and easy to fit in wall cavities, though it is heavier and harder to cut. Through friction-fitting, widely-cut batts are held securely in place, providing ample insulation in walls and ceilings. Mineral wool installation often releases small fibers that can be irritating to the eyes and skin.

5. Operating Temperature Range

Aerogel and mineral wool are both resistant to heat, withstanding temperatures up to 650° Celsius (1200° Fahrenheit). Aerogel offers a versatile temperature range and can tolerate lower temperatures than mineral wool. Both materials perform well in extreme environments, from furnaces to steam pipes.

6. Cost Considerations

Mineral wool is affordable and widely available, while aerogel is more expensive to fabricate and install. Aerogel provides exceptional insulation with thinner layers, which is important in power plants and facilities with severe space constraints.

Both materials are often reusable and provide different cost advantages depending on industrial needs.

Which Material Is the Better Choice for Your Application?

When selecting an insulation, always prioritize the material's best use cases. Aerogel products are designed for extreme temperature management. Cryogel® is designed for low temperatures encountered in refrigeration and liquefied natural gas (LNG) systems, while Pyrogel® is suited for high-temperature pipes and vessels. Aerogel is shown to prevent heat transfer in extreme climates, including Arctic conditions.

Mineral wool is a cost-effective choice for standard high-temperature environments. With fireproofing and soundproofing capabilities, mineral wool offers excellent insulation for refinery and power plant equipment, helping maintain operating temperatures and personnel safety. Mineral wool is favored for fire protection in industrial facilities.

Insulation materials are suited for specific industrial applications and long-term needs. Consider the following factors in your selection:

Key Considerations

Category	Aerogel	Mineral Wool
Required thickness	Very thin	Thick
Maintenance	Low	Moderate
Thermal conductivity	Very low	Low
Fire resistance	Excellent	Excellent
Cost	High	Low to moderate
Ideal environment	Harsh, moisture-prone, tight spaces	Standard, low-risk
Best use cases	Pipelines, refineries, furnaces	Fireproofing, HVAC, budget-sensitive applications
